Measuring Piston-Ring Vertical Clearance
WARNING: This page is about a different variant/trim than selected.
- Measure piston-ring vertical clearance.
Piston-ring vertical clearance
- 1.1 Clean the ring groove on the piston.
- 1.2 Fit piston ring on the ring groove of the piston > Piston-ring vertical clearance

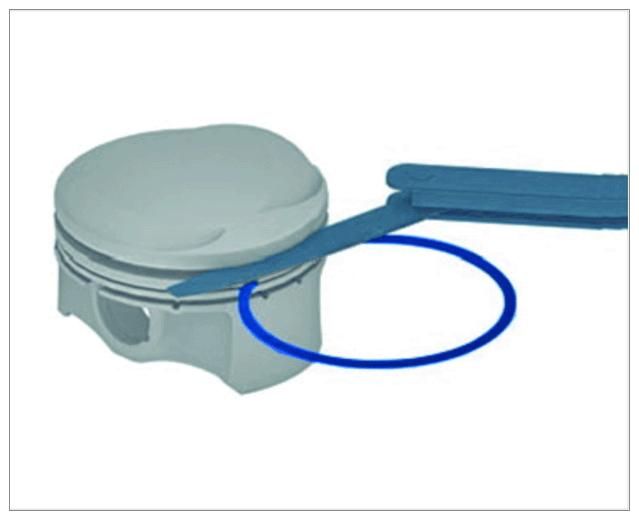

- 1.3 Guide a feeler gauge into the gap between the piston ring and ring groove and read off the value > Piston-ring vertical clearance
Piston ring New in mm Wear limit in mm 1. Compression ring 0, 03-0, 07 Not determined 2. Compression ring 0, 02-0, 06 Not determined Oil scraper ring Cannot be measured -
