Installing Pressure Sensor

Information

• O-rings must always be replaced.
• O-rings must be coated lightly with Kluber Syntheso Glep.

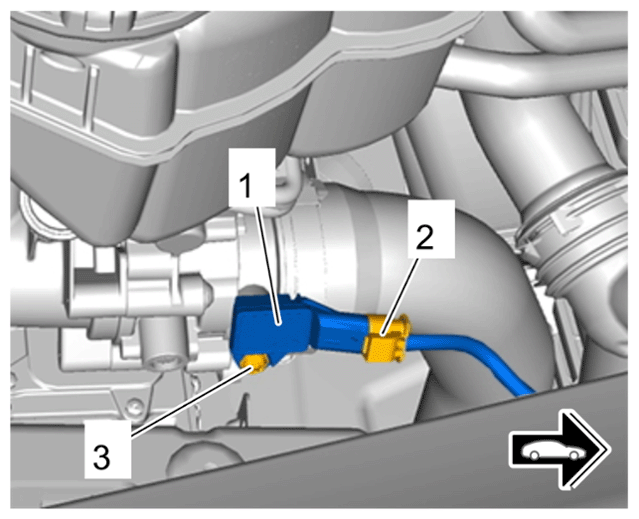

1. Install pressure sensor -1-  .
   1. 1.1 Replace O-ring.
   2. 1.2 Insert pressure sensor -1-  .
   3. 1.3 Fit and tighten screw -3-  .

      > Tightening torque 5 Nm (3.5 ftlb.)

   4. 1.4 Connect and lock electric plug connection -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right pressure sensor
