WM, 216719 Removing And Installing Bypass Flap Control Box (V8 BITURBO): Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image
adjusting shim	Special tool	> 9281	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Dial gage holder	VW tool	> VW387	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

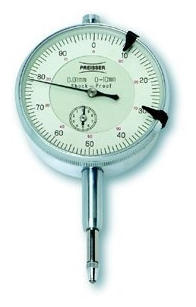

Dial gauge	General workshop equipment	> VAS 6079	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

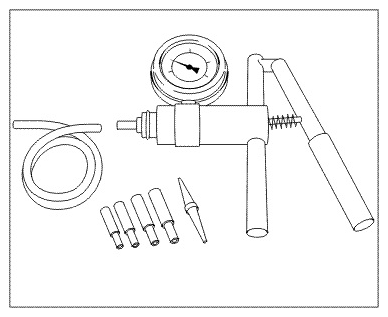

Hand vacuum pump	Vehicle-specific workshop equipment	> VAS 6213	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pressure sensor	Vehicle-specific workshop equipment	> V.A.G 1397B	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

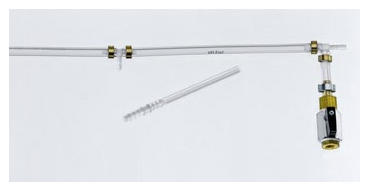

Pressure-regulating valve	Vehicle-specific workshop equipment	> VAS 6342	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

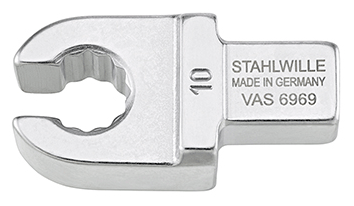

Ring tool attachment, flared a/f 10	Vehicle-specific workshop equipment	> VAS 6969	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Torque wrench, 2-10 Nm (1.5-7.5 ftlb.)	General workshop equipment	> V.A.G 1783	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
