Removing Engine Mounting

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove engine mount -1-  .
    1. 1.1 Unscrew screws -2-  .
    2. 1.2 Remove engine mount -1-  .

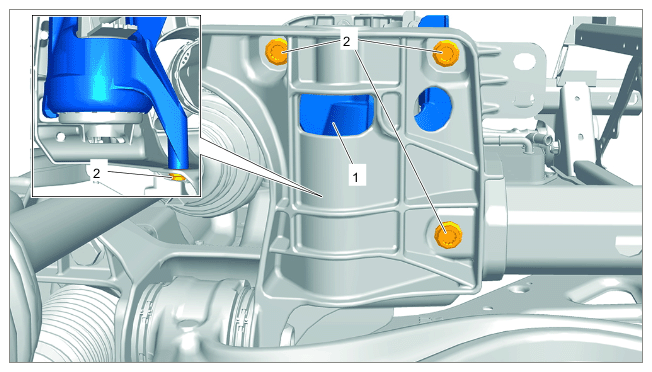

    G15824435Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Engine mounting
