Technical Values

WARNING: This page is about a different variant/trim than selected.

*Location	*Des...	*Type	*Basic val...
Front axle carrier to body front	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Front axle carrier to body front	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Front axle carrier to rear body	Hexagon-head bolt, M10 x 45	Tightening torque	50 Nm (36.9 ftlb.)
Mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Strut with mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Strut with mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°

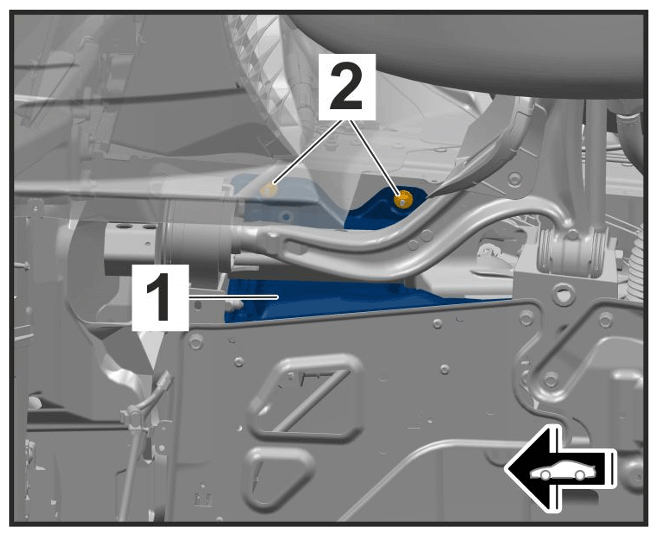

Heat insulation on longitudinal member	Item 2: Hexagon nut	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening heat insulation (diesel engines)
Steering rod to tie rod (toe adjustment)	M14 x 1.5 thread	Tightening torque	90 Nm (67 ftlb.)
Trailing arm to rear axle housing, rear (camber eccentric adjuster)	Eccentric screw, M14 x 1.5 with eccentric washer and hexagon nut	Tightening torque	160 Nm (118 ftlb.)
Tie rod to rear axle housing/servo motor for rear axle steering (toe eccentric adjuster)	Eccentric screw, M12 x 1.5 with eccentric washer and hexagon nut	Tightening torque	100 Nm (74 ftlb.)
