Preparing The Vehicle

WARNING: This page is about a different variant/trim than selected.
  1. Drive the vehicle tension-free onto the wheel-alignment stand, ensuring that axle components are not under tension by moving the vehicle forward and backward several times if necessary.
  2. Remove hub caps -1-  from all four wheels using >9229/1 - puller hook  .

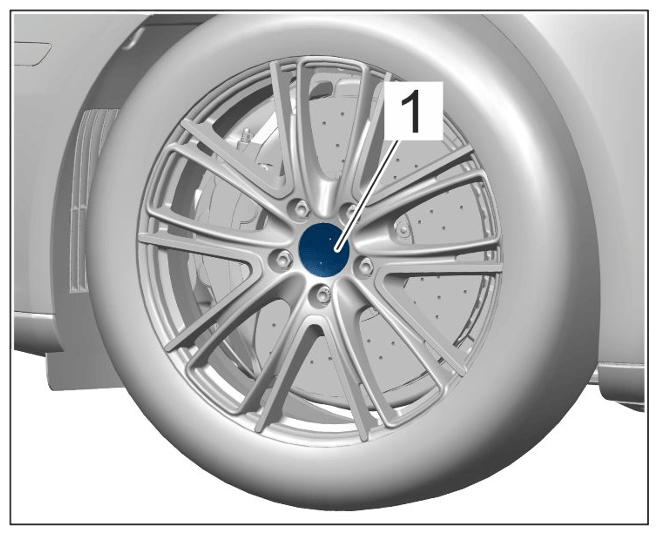

    G15859623Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hub cap

    Information

    Contact surfaces of the wheel hub bore -1-  must be clean and smooth. Even minor debris in the wheel hub bore can result in incorrect measurements.

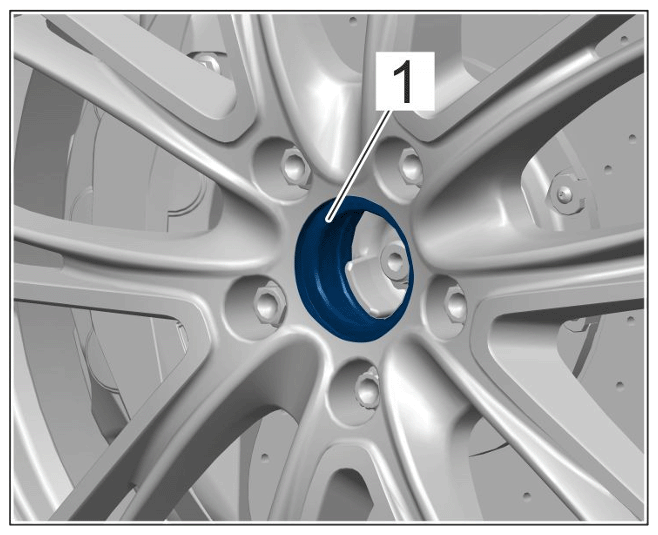

    G15859624Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wheel hub bore

  3. > VAS 6918 - Quick-Clamping Unit  in the wheel hub bores on all four wheels.
  4. Fit measured-value pickups to the >VAS 6918 - Quick-Clamping Unit  on all four wheels.
