Removing Control Unit For Tyre Pressure Monitoring (TPM)

WARNING: This page is about a different variant/trim than selected.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

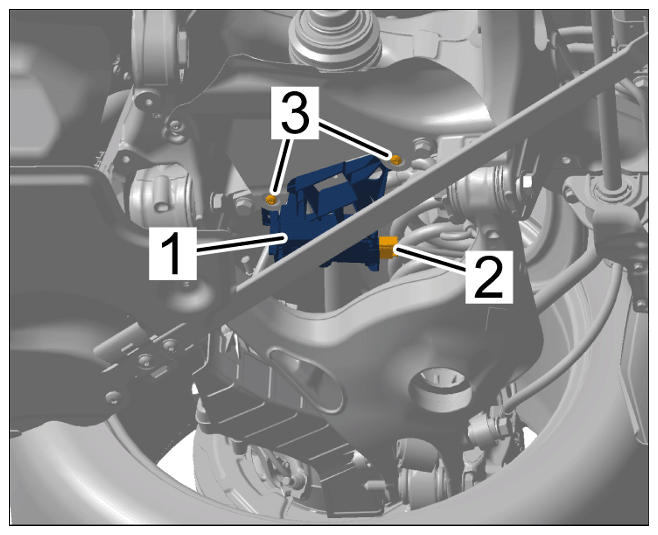

Release and disconnect electric plug connection -2- on the TPM control unit -1- .
Unscrew screws -3- and remove TPM control unit -1- with holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

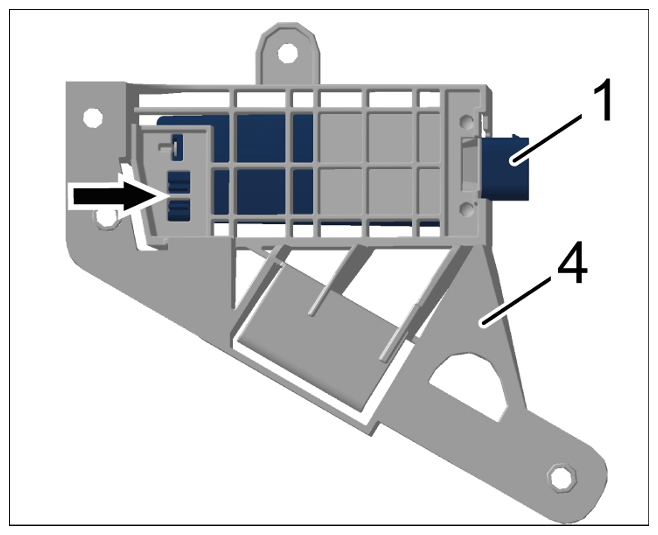

Unclip TPM control unit -1- from the holder -4- (-arrow- ) and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing control unit for Tyre Pressure Monitoring (TPM)
