Removing Wheel Electronics
WARNING: This page is about a different variant/trim than selected.
Installation position: The wheel electronics unit is located on the valve in the outer rim base.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

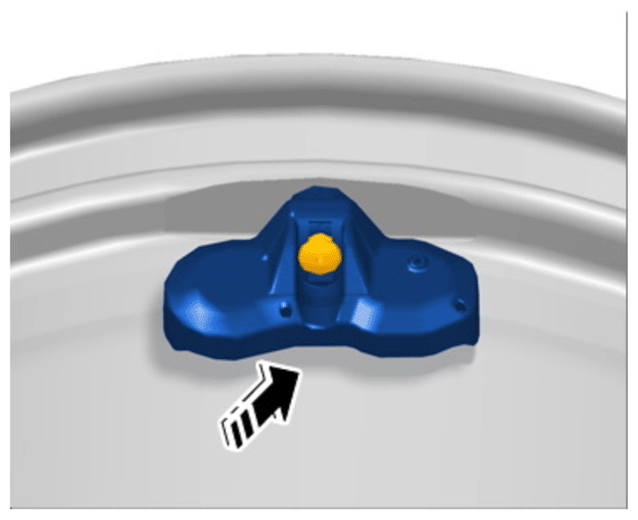

Overview of wheel electronics
- Loosen screw -1-
for the wheel electronics unit. If necessary, counter in the bore at the valve foot using a suitable assembly pin (for example, steel pin Ø approx. 1.8 mm).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

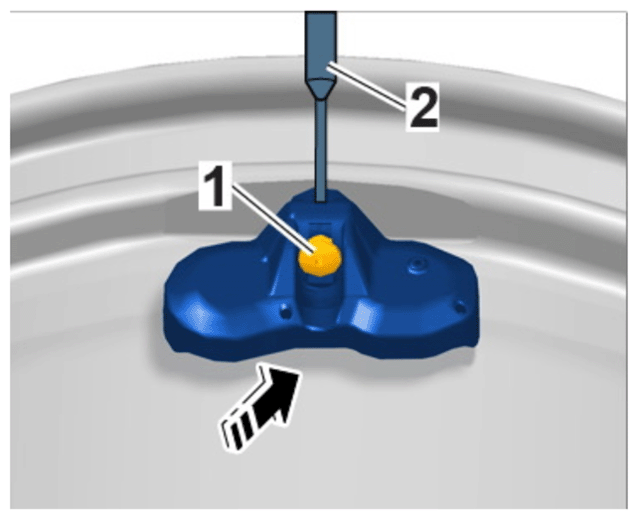

Wheel electronics mounting
- Undo the union nut and take out the valve.
