Information On Wheel Bolts

WARNING: This page is about a different variant/trim than selected.

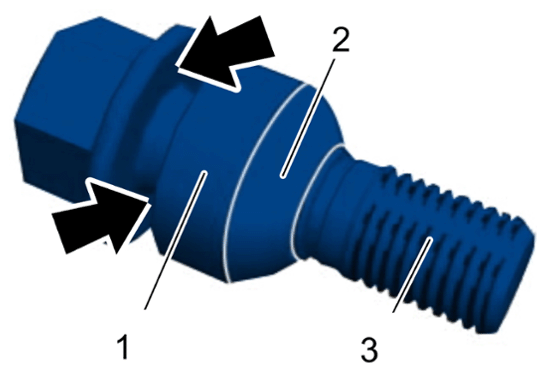

G15859596Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel bolt

1  Spherical cap ring (permanent)
2  Spherical cap bearing surface facing the rim → do not grease
3  Thread → do not grease
Arrow  Contact surfaces between the bolt head and spherical cap ring → do not grease
