Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...
Screw securing potential equalization line to electric motor		Tightening torque	20 Nm (15 ftlb.)

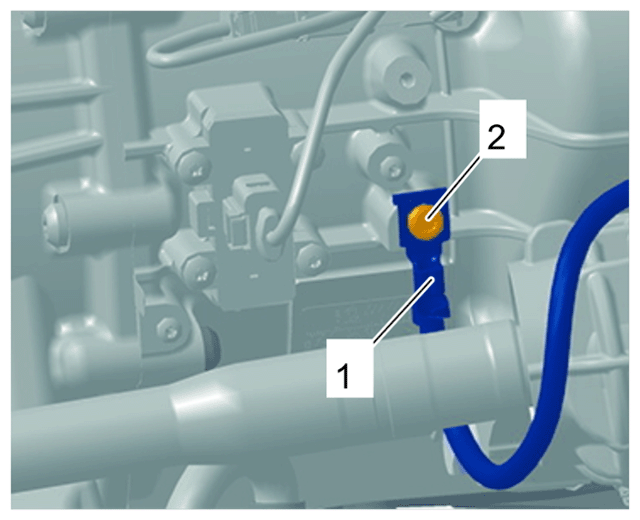

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Potential equalization on electric motor
Fastening screws for heat protection on rotor position sensor		Tightening torque	8 Nm (6 ftlb.)

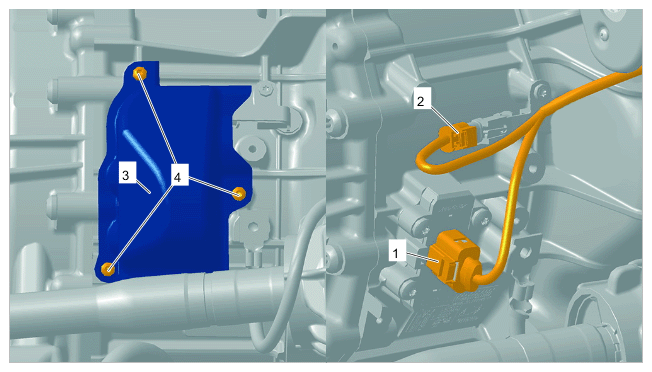

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rotor position sensor and temperature sensor for electric motor
Fastening screws securing coolant line to electric motor		Tightening torque	8 Nm (6 ftlb.)

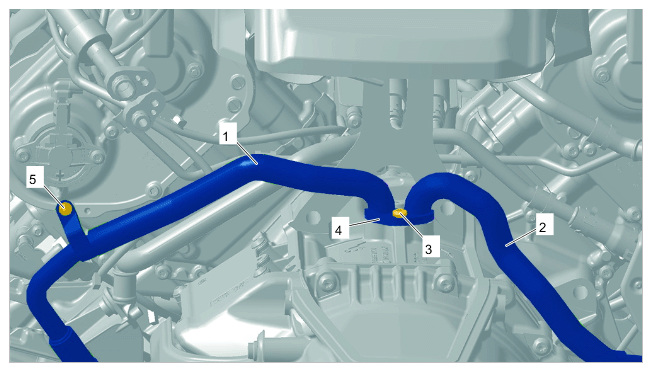

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Coolant lines on electric motor
Screw securing Porsche Doppelkupplung (PDK) to engine	M12 x 100 x 30/replace	Initial tightening	20 Nm (15 ftlb.)
Screw securing Porsche Doppelkupplung (PDK) to engine	M12 x 100 x 30/replace	Torque angle	60 (44 ftlb.) °
Screw securing Porsche Doppelkupplung (PDK) to engine	M10 x 95/replace	Initial tightening	15 Nm (11 ftlb.)
Screw securing Porsche Doppelkupplung (PDK) to engine	M10 x 95/replace	Torque angle	105°
Screw for connection point for ATF lines/transmission	M8 x 20	Tightening torque	20 Nm (15 ftlb.)
Screw for ATF lines/transmission	M6 x 12	Tightening torque	8 Nm (6 ftlb.)
