Installing Change-Over Valve For High-Temperature System (UVW 3)

WARNING: This page is about a different variant/trim than selected.

Install change-over valve for high-temperature system -1- .
1. 1.1 Position change-over valve for high-temperature system -1- .
2. 1.2 Fit and tighten screws -5- .
  > Tightening torque 8 Nm (6 ftlb.)
3. 1.3 Connect and lock cable plug -4- .
4. 1.4 Push on coolant hoses -3- and tighten spring band clamps -2- using > VAS 6890 - Spring Band Clamp Pliers .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

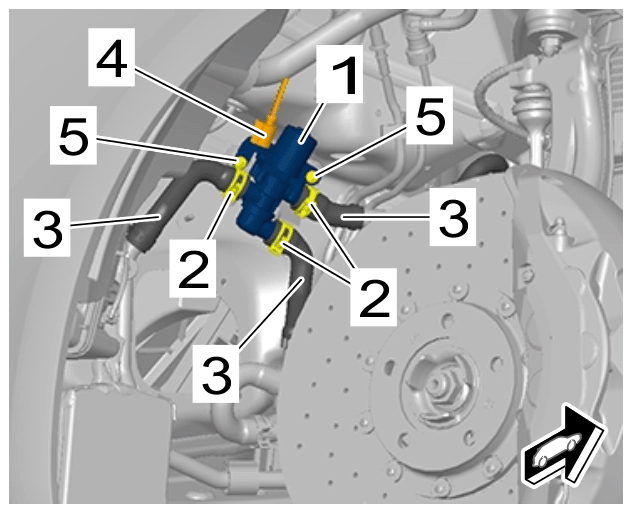

Change-over valve for high-temperature system (UVW 3)
