Removing Additional Coolant Pump For High-Temperature System (P5)

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
→ Avoid contact with hot fluid.

→ Wear personal protective gear.

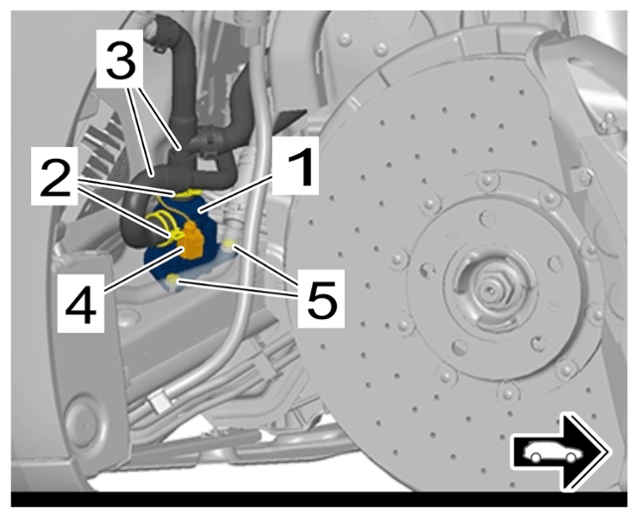

Remove additional coolant pump for high-temperature system -1- .
1. 1.1 Loosen spring band clamps -2- using > VAS 6890 - Spring Band Clamp Pliers and pull off coolant hoses -3- .
2. 1.2 Catch escaping coolant and close off line connections using suitable stoppers.
3. 1.3 Release and disconnect cable plug -4- .
4. 1.4 Unscrew and remove screws -5- .
5. 1.5 Remove additional coolant pump for high-temperature system -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump for high-temperature system
