Removing Front Air Guide (Cooling-Air Flaps)
WARNING: This page is about a different variant/trim than selected.
- Open sections -3-
of front air guide.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Opening sections of front air guide
- Unclip front air guide -1-
from the radiator shutter -2-
all the way around and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

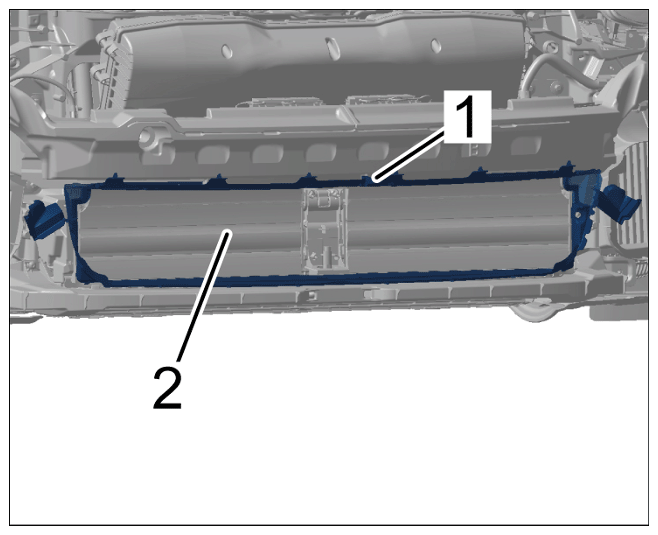

Removing front air guide
