Removing Front Axle Carrier: Notes
- Only for vehicles with PDCC:

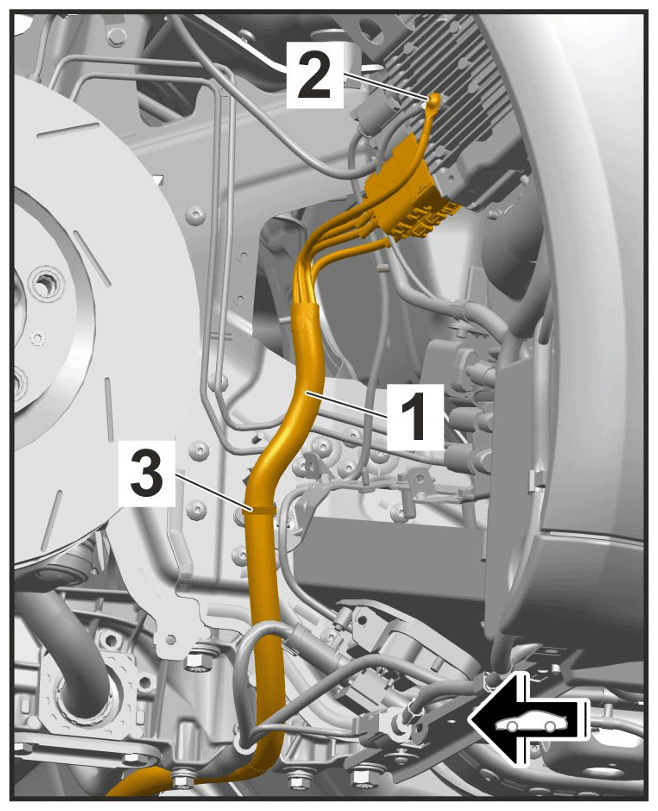

Disconnect wire harness for PDCC -1-
.
- 1.1 Unscrew screw for ground line -2- .
- 1.2 Loosen bracket -3- .

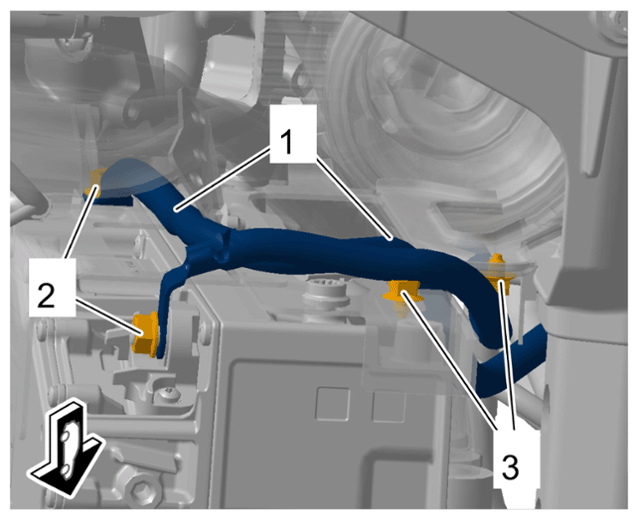

Mounting for PDCC wire harness
- Only for vehicles with PDCC:
Disconnect electric plug connections from PDCC control unit.
- 2.1 Release electric plug connections in the sequence -1 to 5- and disconnect them from the PDCC control unit.

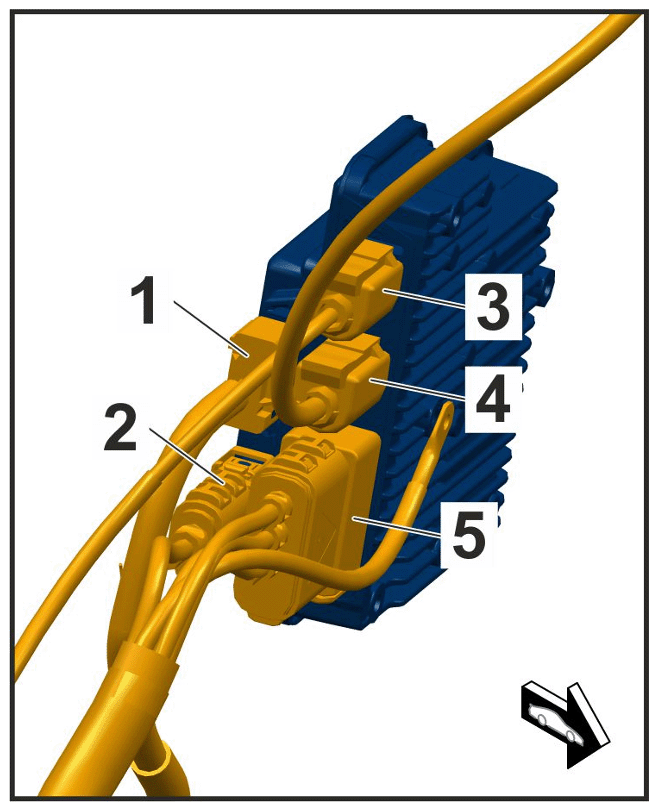

Electric plug connections on PDCC control unit

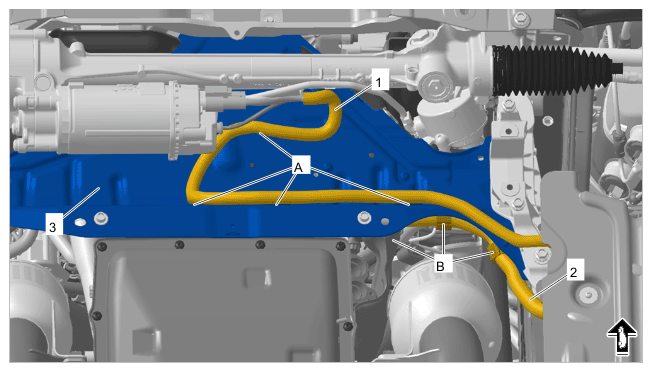

- Disconnect electric lines for steering -1-
and transmission -2-
at the anti-roll bar mount -3-
.
- 3.1 Unclip electric line for steering -1- at -items A- on the anti-roll bar mount -3- .
- 3.2 Unclip electric line for transmission -2- at -items B- on the anti-roll bar mount -3- .
Electric lines on anti-roll bar mount

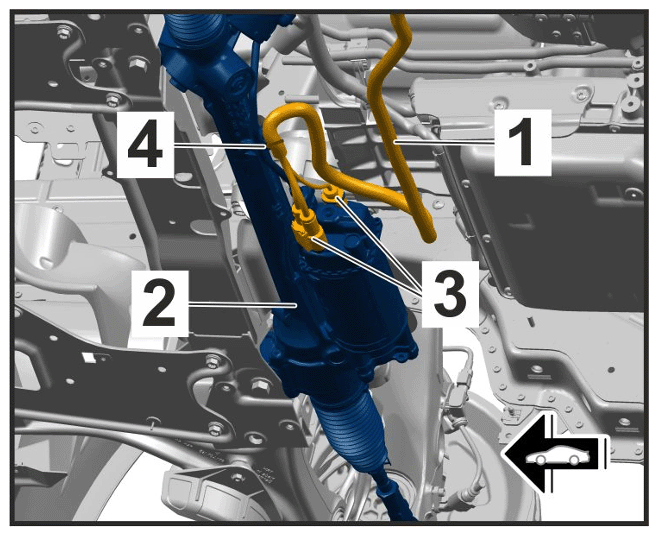

- Loosen electric line -1-
on the power-steering gear -2-
.
- 4.1 Release and disconnect electric push-on connectors -3- .
- 4.2 Loosen bracket -4- .
Electric push-on connectors on power-steering gear

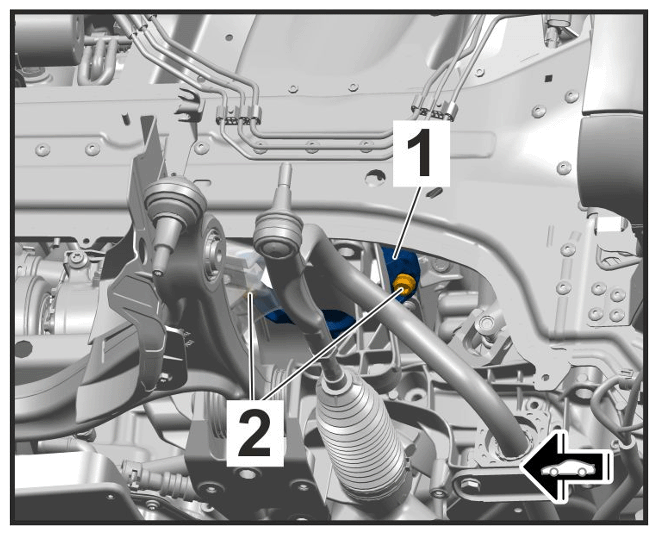

- Remove universal joint -1-
on power-steering gear.
- 5.1 Unscrew and remove screw -2- .
- 5.2 Pull universal joint -1- up and off.

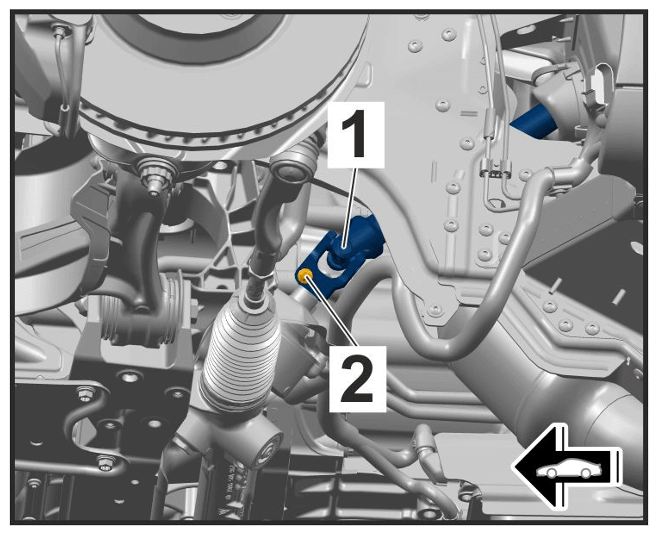

Universal joint mounting
- Disconnect 12-volt plug connection from electric connection -3-
and adjacent coolant hoses -1-
from high-voltage power electronics.
- 6.1 Have suitable stoppers ready for closing off the connection openings on the high-voltage power electronics and coolant hoses -1- .
- 6.2 Have suitable material ready to collect emerging coolant.
- 6.3 Clamp off coolant hoses -1- using >Nr.192 - hose clamping pliers .
- 6.4 Loosen spring band clamps -2- using >VAS 6890 - Spring Band Clamp Pliers .
- 6.5 Disconnect coolant hoses -1- and close them off using suitable stoppers.
- 6.6 Close off connection openings on the high-voltage power electronics using suitable stoppers.
- 6.7 Release and disconnect 12-volt plug connection from electric connection -3- on the high-voltage power electronics.
12-volt plug connection for high-voltage power electronics

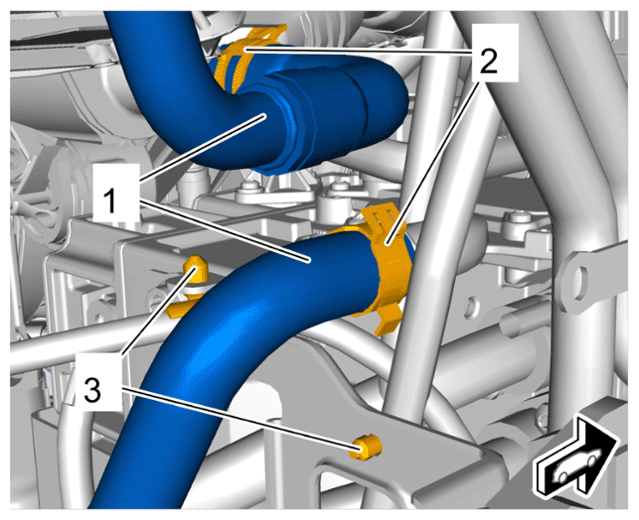

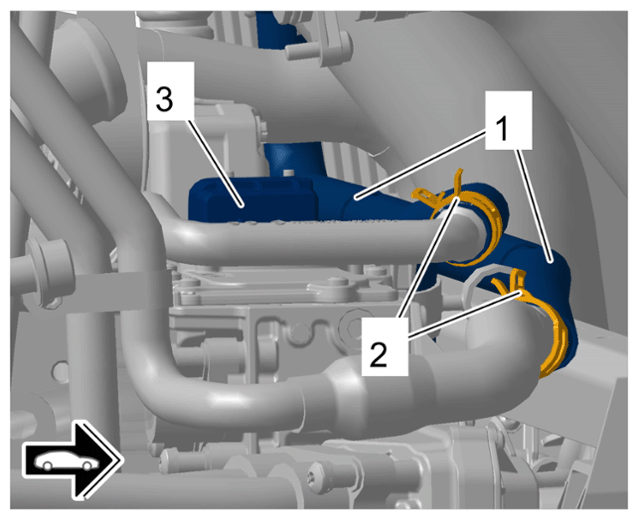

- Disconnect the remaining coolant hoses -1-
from the high-voltage power electronics.
- 7.1 Have suitable stoppers ready for closing off the connection openings on the high-voltage power electronics and coolant hoses -1- .
- 7.2 Have suitable material ready to collect emerging coolant.
- 7.3 Clamp off coolant hoses -1- using >Nr.192 - hose clamping pliers .
- 7.4 Loosen spring band clamps -2- using >VAS 6890 - Spring Band Clamp Pliers .
- 7.5 Disconnect coolant hoses -1- and close them off using suitable stoppers.
- 7.6 Close off connection openings on the high-voltage power electronics using suitable stoppers.
- 7.7 Loosen clips -3- from high-voltage power electronics holder.
Coolant hoses on high-voltage power electronics
- Disconnect electric lines -1-
from the high-voltage power electronics.
- 8.1 Loosen and unscrew nuts -2- .
- 8.2 Remove electric lines -1- (positive at the bottom/ground at the top) from the high-voltage power electronics and loosen clips -3- .
- 8.3 Hang electric lines -1- at the side.
Electric lines for high-voltage power electronics
Information
- Protect high-voltage plug connections from dampness.
- Do not release high-voltage plug connections until you have opened the cooling system.
- Disconnect high-voltage lines from the high-voltage power electronics.
- 9.1 Loosen and unscrew screws -1- .
- 9.2 Disconnect high-voltage lines from the high-voltage power electronics -arrow- .
High-voltage lines on high-voltage power electronics
Information
- Protect high-voltage plug connections from dampness.
- Do not release high-voltage plug connections until you have opened the cooling system.

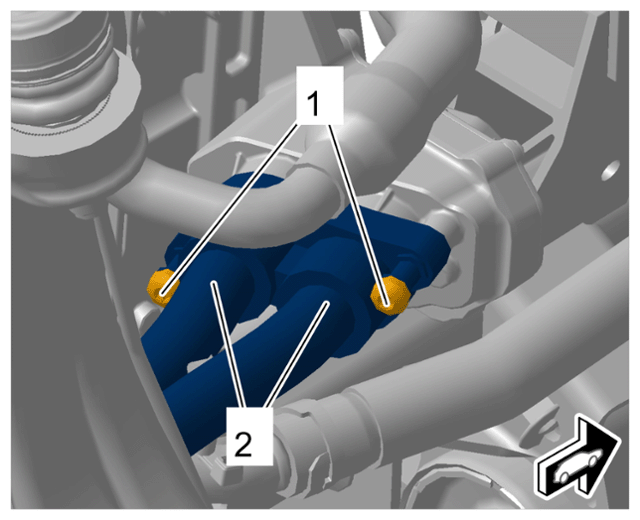

- Disconnect high-voltage lines -2-
at the side of the high-voltage power electronics.
- 10.1 Loosen and unscrew screws -1- .
- 10.2 Disconnect high-voltage lines -2- from the high-voltage power electronics.
High-voltage lines at the side of the high-voltage power electronics

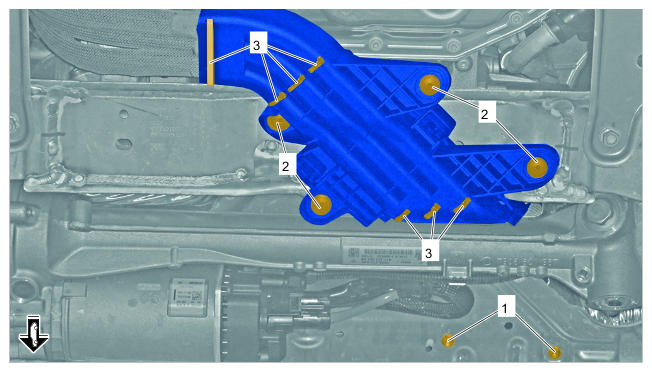

- Remove bracket for high-voltage lines.
- 11.1 Remove expansion rivets -2- .
- 11.2 Open tie-wrap -3- , unclip upper part of bracket for high-voltage lines and remove bracket for high-voltage lines from frontaxle carrier.
- 11.3 Move high-voltage lines aside and secure them.
Mounting for bracket for high-voltage lines

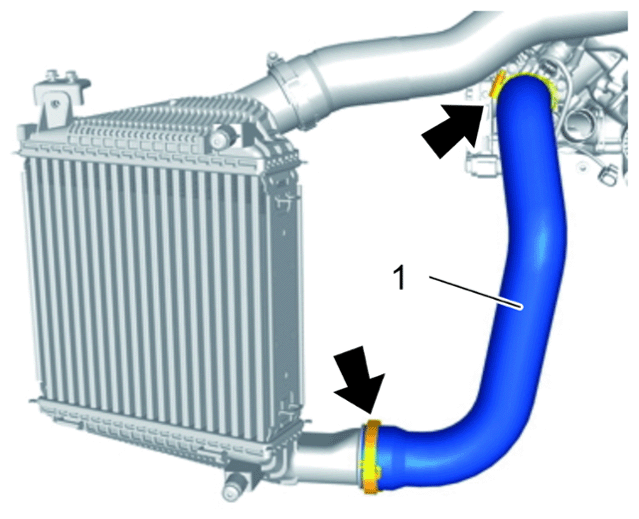

- Loosen moulded hose -1-
at the bottom on both sides of the vehicle at the charge-air cooler.
- 12.1 Loosen screw-type clamp on moulded hose -bottom arrow- and pull off pressure hose.
Moulded hose from turbocharger to charge-air cooler
- Release and disconnect electric plug connection -3-
from the horn -1-
on both sides of the vehicle.

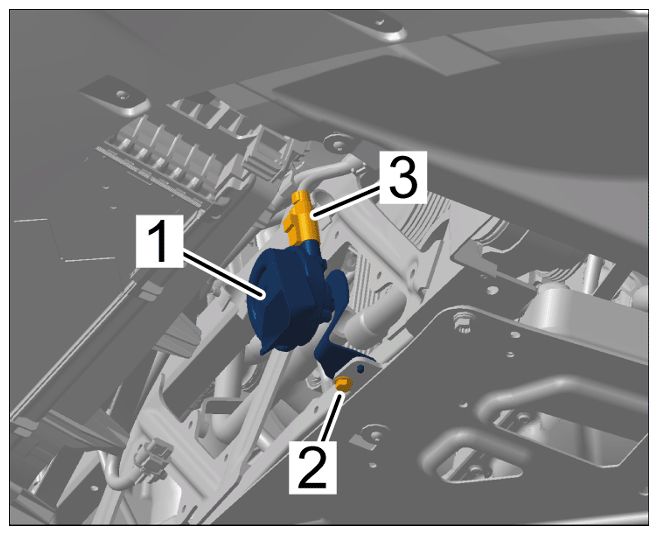

Mounting for horn

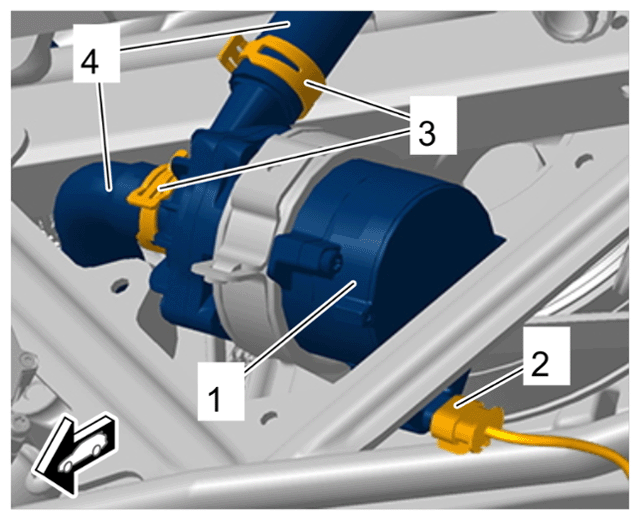

- Disconnect electric plug connection -2-
and coolant lines -4-
from the first additional coolant pump -1-
.
- 14.1 Release and disconnect electric plug connection -2- .
- 14.2 Loosen spring band clamps -3- using >VAS 6890 - Spring Band Clamp Pliers and disconnect coolant lines -4- from the first additional coolant pump -1- .
Additional coolant pump

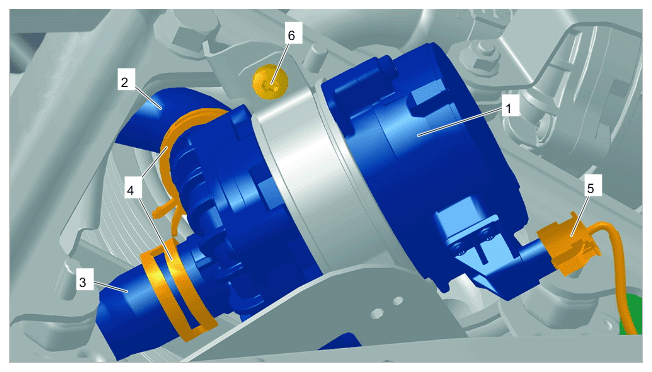

- Disconnect electric plug connection -5-
and coolant lines -2 and 3-
from the second additional coolant pump -1-
.
- 15.1 Release and disconnect electric plug connection -5- .
- 15.2 Loosen spring band clamps -4- using >VAS 6890 - Spring Band Clamp Pliers and disconnect coolant lines -2 and 3- from the second additional coolant pump -1- .
Additional coolant pump
Information

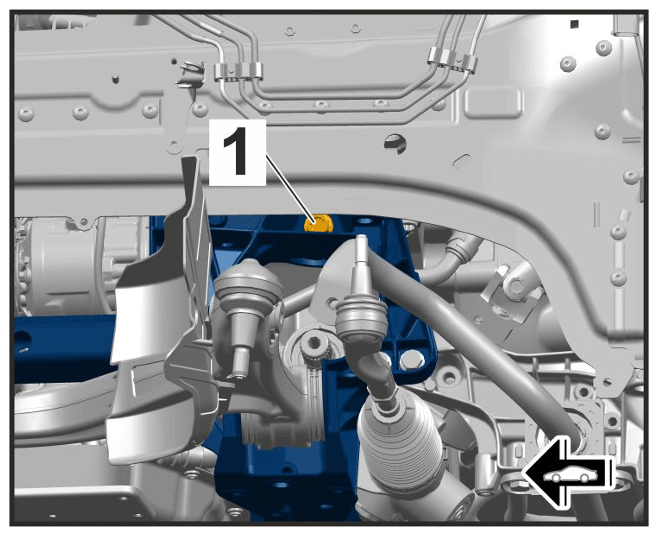

When you loosen the fastening screws securing the engine mount to the engine, the fastening screw -1- securing the front-axle carrier to the engine mount is accessible when the front-axle carrier is lowered.
Mounting for front-axle carrier on engine mount
- Loosen screws -2-
securing the engine mount -1-
to the engine by a few turns on both sides of the vehicle (do not unscrew fully!)
Mounting for engine mount on engine
- Raise the front-axle carrier using >VAS 6832 - Master Gear unit elevating platform
and >VAS 6832/7 - Assembly fixture - Panamera G2
.
- 17.1 >VAS 6832/7 - Assembly fixture - Panamera G2 must be prepared in such a way that only the assembly drivers -1- for the front axle including the supports -2 to 4- are fitted (see "VA" (front axle) marking on >VAS 6832/7 - Assembly fixture - Panamera G2 ).
- 17.2 >VAS 6832 - Master Gear unit elevating platform with >VAS 6832/7 - Assembly fixture - Panamera G2 must be positioned under the vehicle and the height of the assembly drivers and supports must be adjusted so that the front-axle carrier can be raised evenly.

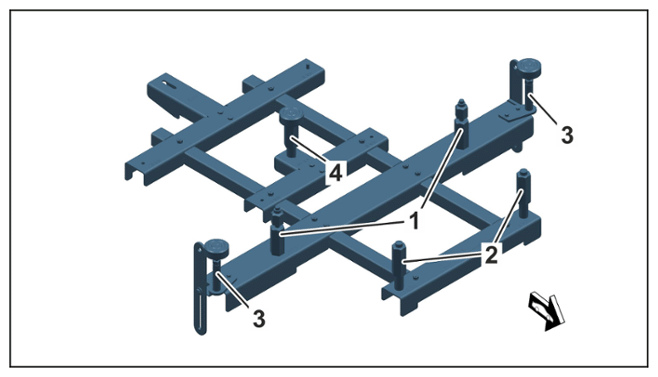

Preparing VAS 6832/7 for mounting front-axle carrier

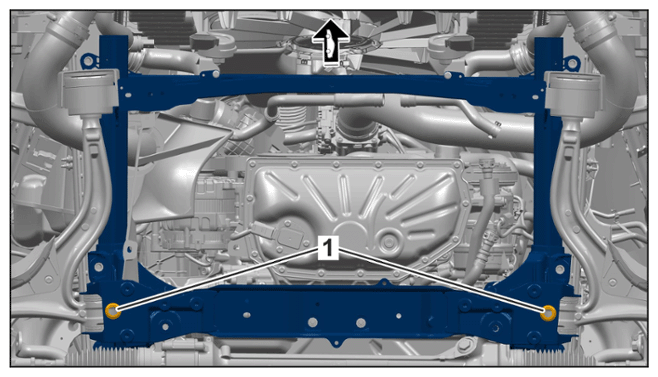

- Carefully guide the assembly drivers into the jacking points -1-
on the front-axle carrier.
Mounting points for front-axle carrier
- Mark the position of the front-axle carrier (at least at the 2 front bolting points on the front-axle carrier) on the body -1-
. This will give you a rough idea of the correct position for re-installation.
Marking (example)

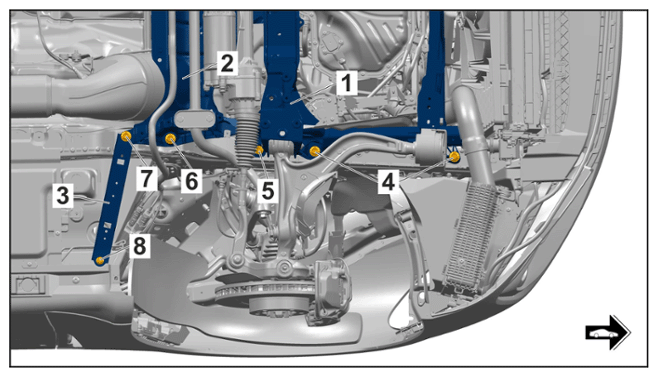

- Remove front-axle carrier.
- 20.1 Unscrew screws -7 and 8- on both sides of the vehicle and remove struts -3- .
- 20.2 Unscrew screws -4 to 6- on both sides of the vehicle.
Mounting for front-axle carrier
- Remove front-axle carrier on both sides of the vehicle from the engine mount.
- 21.1 >VAS 6832 - Master Gear unit elevating platform must be lowered as far as required until the screw -1- is accessible.
- 21.2 Unscrew and remove screw -1- .
Mounting for front-axle carrier on engine mount
- > VAS 6832 - Master Gear unit elevating platform
must be lowered carefully.
- 22.1 Make sure not to damage the ATF cooler and the high-voltage wiring harness for the high-voltage power electronics!
