Removing Balance Shaft (V6 Turbo)

WARNING: This page is about a different variant/trim than selected.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Remove balance shaft -3- .

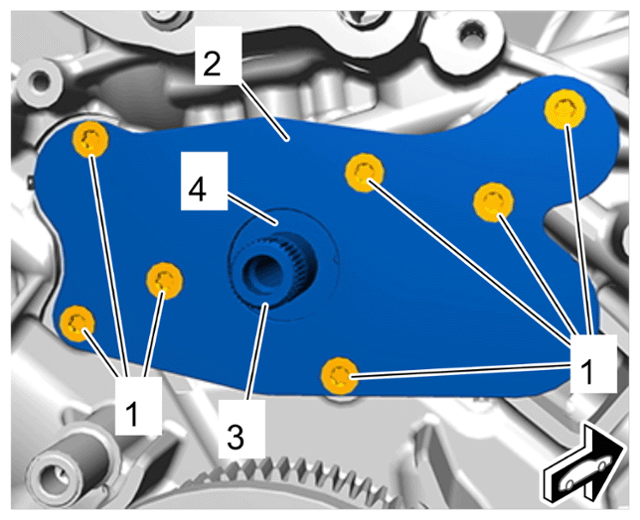

1. 1.1 Loosen and unscrew screws -1- and remove end plate -2- for balance shaft -3- .
2. 1.2 Remove old seal and remove thrust washer -4- from balance shaft -3- .
3. 1.3 Remove balance shaft -3- for transmission side from the engine block.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Balance shaft end plate
