Installing Balance Shaft (V6 Turbo)

WARNING: This page is about a different variant/trim than selected.

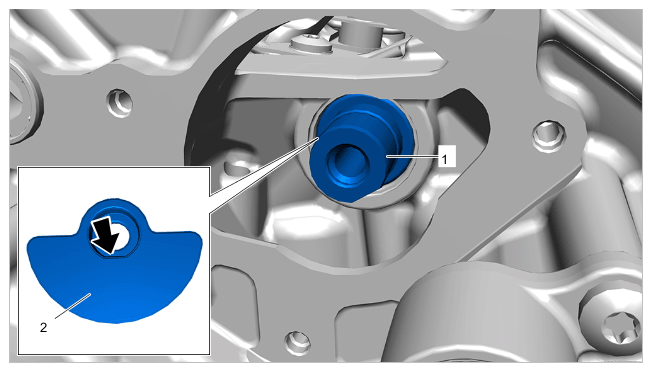

Move balance shaft -1- into installation position and attach the balance weight -2- to the balance shaft -1- . The milled surface -arrow on the balance weight must be seated on the milled surface on the balance shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Milled surface of balance weight

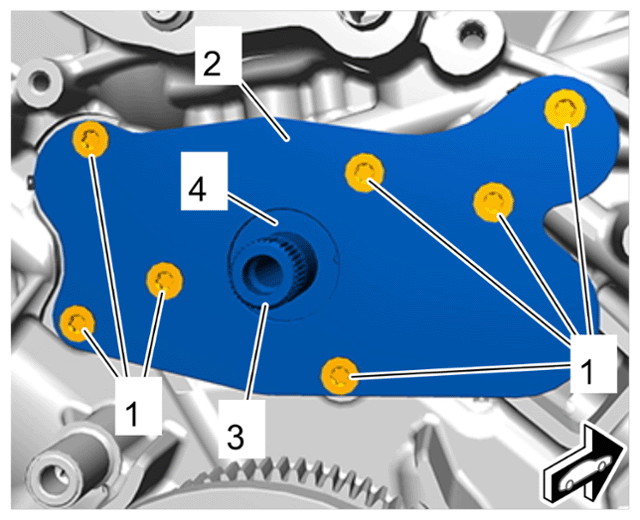

Fit end plate -2- for balance shaft -3- .
1. 2.1 Fit new seal for end plate -2- .
2. 2.2 Fit thrust washer -4- on the balance shaft -3- .
3. 2.3 Position end plate -2- , fit new screws -1- and tighten to > Tightening torque 9 Nm (6.5 ftlb.) .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Balance shaft end plate
