Removing Drive Belt For Air-Conditioning Compressor

WARNING: This page is about a different variant/trim than selected.

Use chalk or a felt-tip pen to mark the rolling direction of the drive belt for the air-conditioning compressor for re-installation.
Slacken drive belt for air-conditioning compressor.
1. 2.1 Remove cover on the tensioning device.
2. 2.2 Loosen screw -1- by 1-1/2 turns.
3. 2.3 To slacken the drive belt, swivel the tensioning device clockwise using a TORX T55 socket wrench -arrow A- .
4. 2.4 Remove the drive belt.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

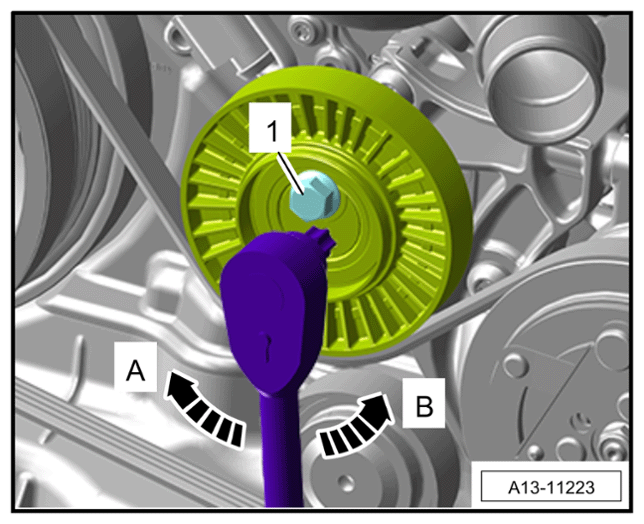

Loosening drive belt for air-conditioning compressor
