Installing Drive Belt For Generator
WARNING: This page is about a different variant/trim than selected.

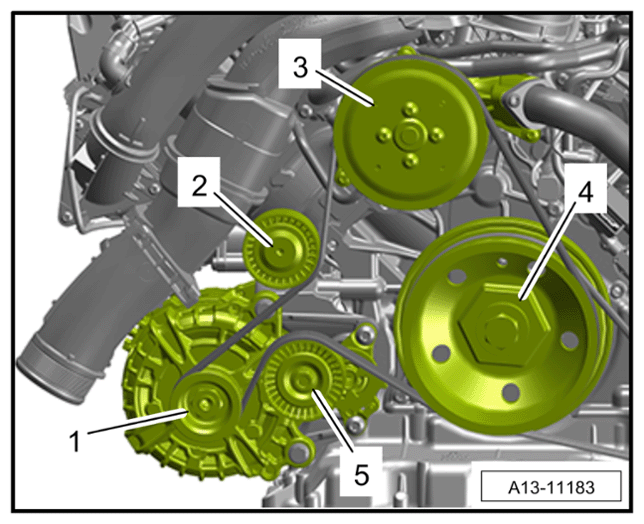

Routing of drive belt for generator
| 1 | Generator |
| 2 | Deflection roller |
| 3 | Coolant pump |
| 4 | Vibration damper |
| 5 | Tensioning device for drive belt for generator |
- Fit drive belt for generator.
- 1.1 Fit drive belt for generator on the pulleys and align it along the grooves on the pulleys.

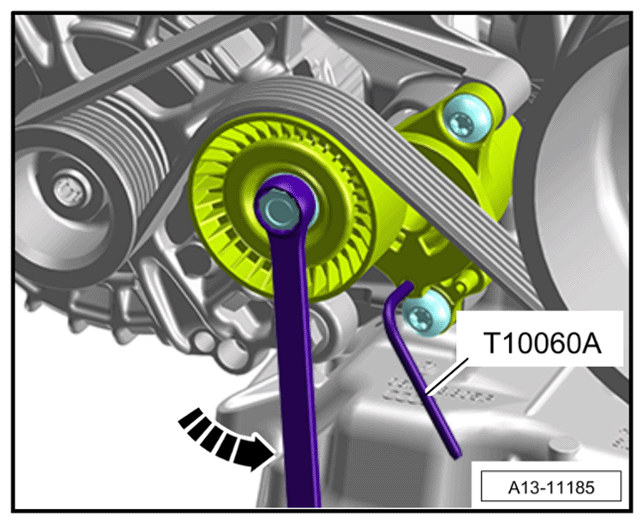

- 1.2 To tension the drive belt, swivel the tensioning device anti-clockwise using a ring wrench -arrow- .
- 1.3 > T10060A - Staking mandrel must be removed from the tensioning device.
- 1.4 Slowly swivel out the ring wrench to its original position.
- 1.5 Check that the drive belt is seated and tensioned correctly.
Tensioning drive belt for generator
