Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install deflection roller for V-belt (air-conditioning compressor) -2- .

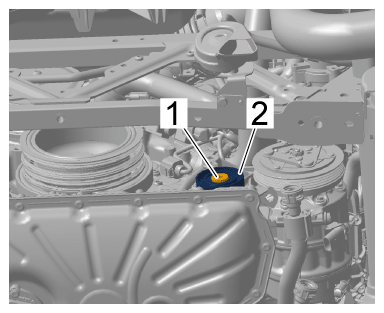

1.1 Fit deflection roller for V-belt (air-conditioning compressor) -2- and screw in and tighten new screw -1- > Tightening torque 25 Nm (19 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Deflection roller for V-belt (air-conditioning compressor)

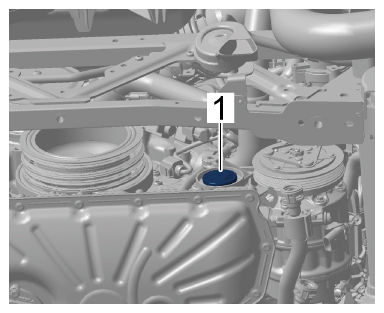

1.2 Install cover on deflection roller -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Deflection roller cover

Install ATF cooling line (front section).
> WM, 386219 REMOVING AND INSTALLING ATF COOLING LINE (FRONT SECTION)
Install belt tensioner (air-conditioning compressor).
> 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR)
