Preliminary Work
WARNING: This page is about a different variant/trim than selected.
NOTE:
Incorrect handling of tools
- Risk of damage to the body
→ Only use tools approved by Porsche.
→ Always ensure that the tool is seated correctly.
→ Protect the body and interior of the vehicle from damage with protective covers.
→ Cover delicate components with cardboard or sheetmetal panels.
- Remove belt tensioner (air-conditioning compressor).
> 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR)
- Remove ATF cooling line (front section).
> WM, 386219 REMOVING AND INSTALLING ATF COOLING LINE (FRONT SECTION)Counterhold tool T40330 on vibration balancer
- Remove deflection roller for V-belt (air-conditioning compressor).

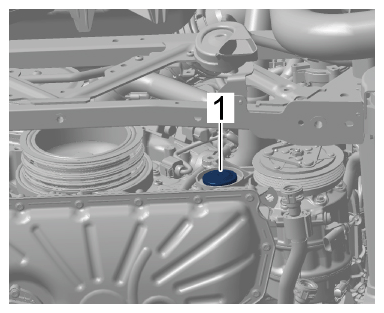

- 3.1 Unclip cover on deflection roller -1-
.
Deflection roller cover

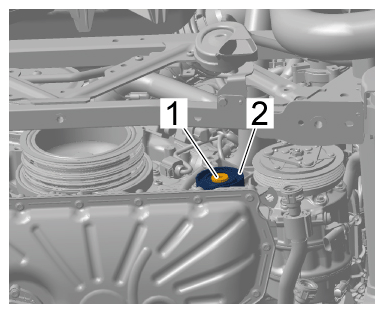

- 3.2 Unscrew screw -1- and remove deflection roller for V-belt (air-conditioning compressor) -2- .
Deflection roller for V-belt (air-conditioning compressor)
- 3.1 Unclip cover on deflection roller -1-
.
- Prepare tool > T40330 - Brace
.

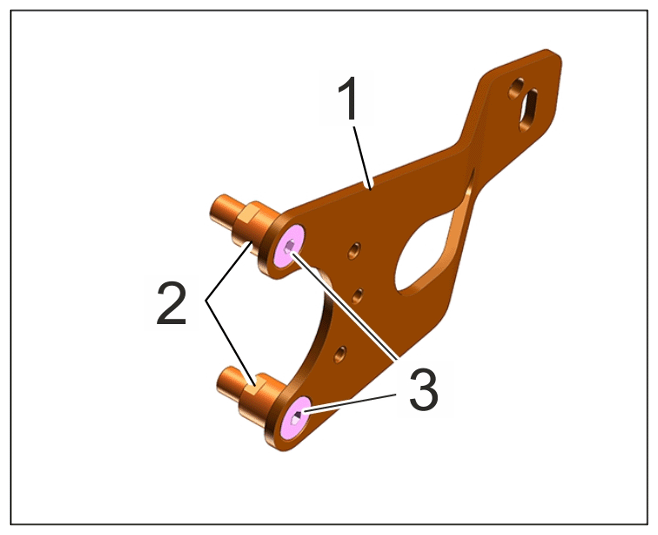

- 4.1 Fit adapter T40330/2 -2- on counter-hold tool T40330/1 -1- .
- 4.2 Fit and tighten screws -3- .
Tool T40330
