Installing Crankshaft Sealing Ring
WARNING: This page is about a different variant/trim than selected.

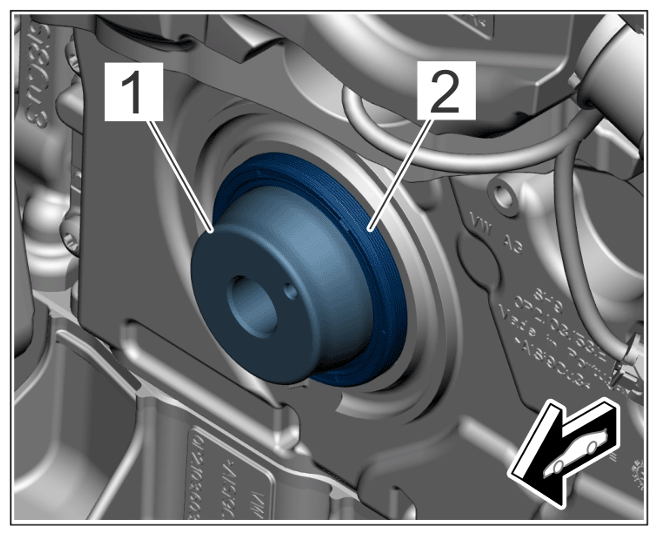

- Fit guide sleeve T40320B
/4-1-
from > T40320B - assembly fixture
on the crankshaft and slide sealing ring -2-
into the cover.
Guide sleeve and sealing ring
Information
Leave guide sleeve fitted on the crankshaft.

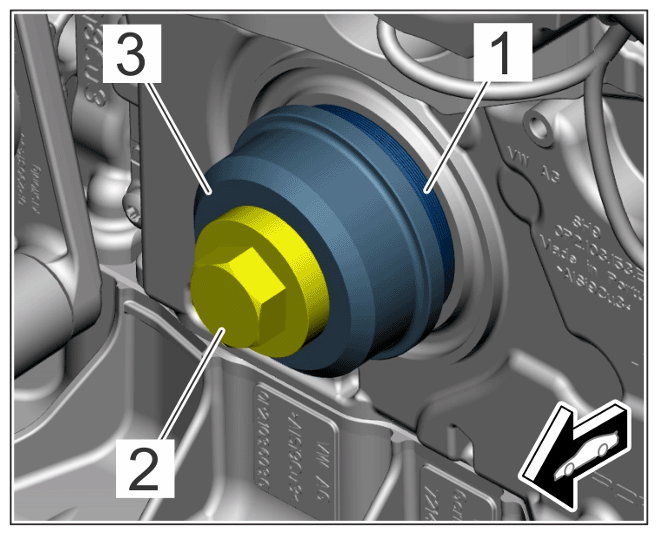

- Press in sealing ring -1-
.
Pressure piece
- 2.1 Fit pressure piece T40320B/1 -3- from > T40320B - assembly tool on the crankshaft -2- with vibration damper screw.
- 2.2 Press in sealing ring -1- up to the anchor block.
- 2.3 Remove thrust piece T40320B/1 -3- and guide sleeve T40320B/4 .
