Removing Belt Tensioner (Air-Conditioning Compressor)

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew screw -1-  and remove belt tensioner (air-conditioning compressor) -2-  .

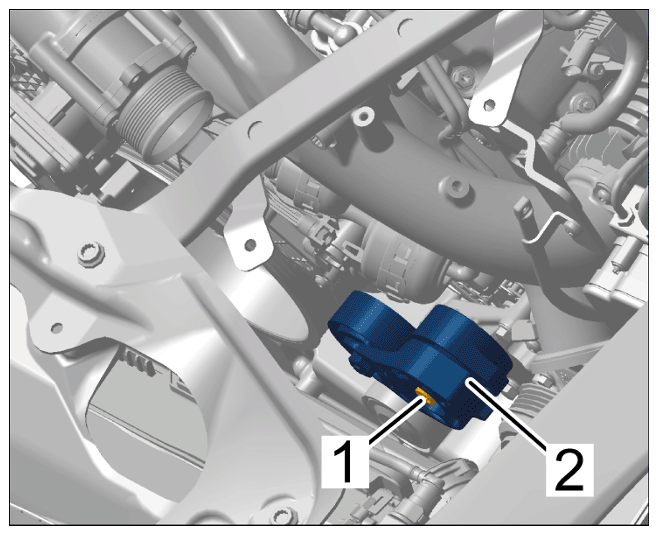

    G15822124Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing belt tensioner (air-conditioning compressor)
