Removing Flywheel

WARNING: This page is about a different variant/trim than selected.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Component overview:

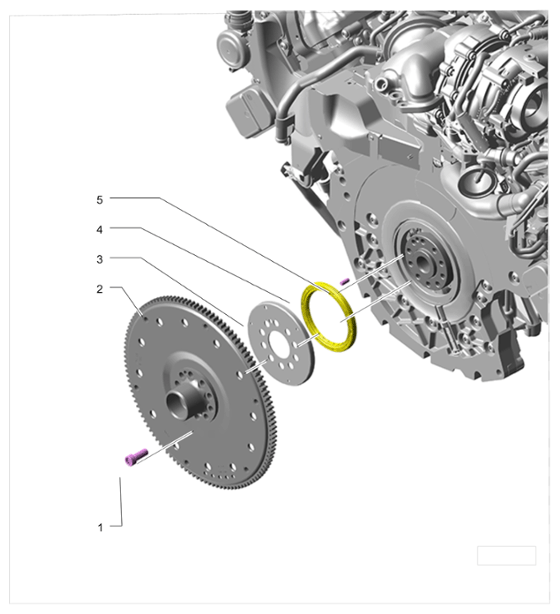

Fig 1: Flywheel, Hall-Sender Rotor And Sealing Ring Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of flywheel, hall-sender rotor and sealing ring

1	Screw for flywheel, M10 x 29 (multiple-tooth screw, a/f 12, micro-self-locking) - Replace screws!
2	Flywheel
3	Hall-sender rotor
4	Sealing ring for crankshaft on transmission side
5	Centring pin

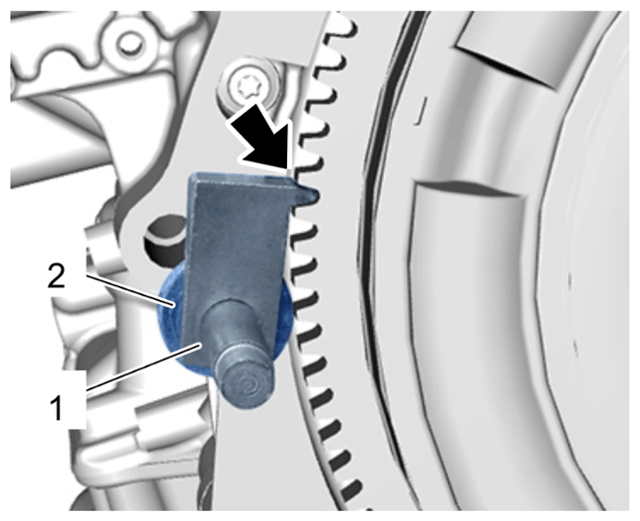

Position special tool > 10-201 - holder-1- with two washers -2- as shown on the flywheel -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Counter at the flywheel when loosening
Loosen and unscrew screws on the flywheel.
1. 2.1 Screws are micro-self-locking and must be replaced!
2. 2.2 Remove flywheel and hall-sender rotor.
