Installing Flywheel

WARNING: This page is about a different variant/trim than selected.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

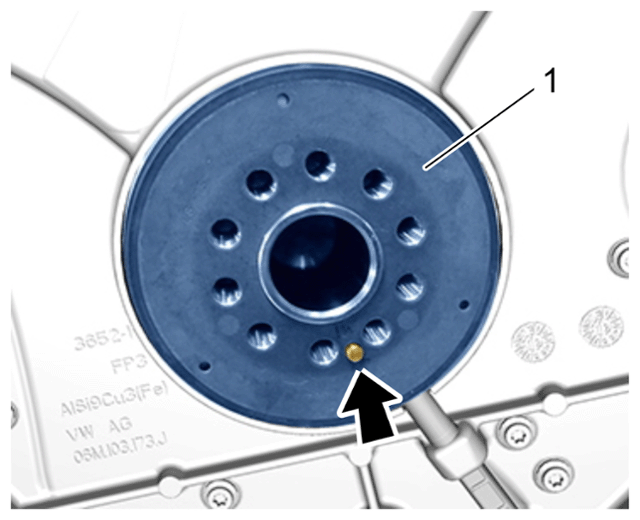

Position hall-sender rotor -1- and check position of centring pin -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hall-sender rotor
Fit the flywheel and check position of centring pin.
1. 2.1 Secure the flywheel with a new screw.

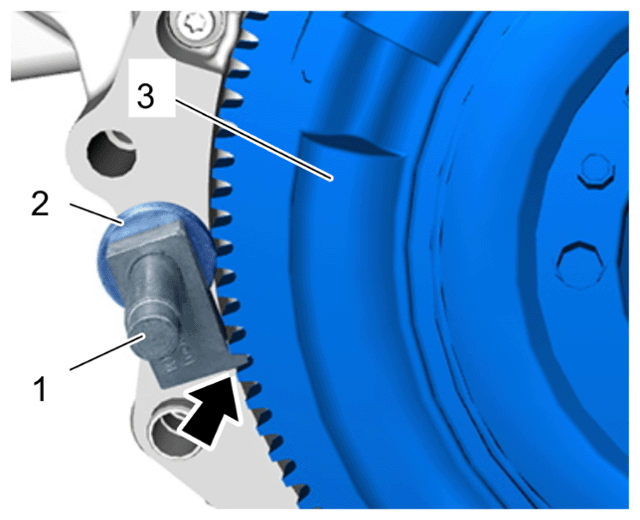

Position special tool > 10-201 - holder-1- with two washers -2- as shown on the flywheel -3- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Counter at the flywheel when tightening
Fit new screws evenly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joint for flywheel
Tighten screws on the flywheel crosswise using tool > VAS 6942 - Torque/torque angle wrench, 20-400 Nm (15-296 ftlb.) .
> pre-tightening 60 Nm (44.3 ftlb.)

> final-tightening + 90°
