Removing Sealing Ring

WARNING: This page is about a different variant/trim than selected.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Remove sealing ring using > T20143 - puller hook (T20143/2).
Use puller hook carefully to prevent damage to the sealing faces!

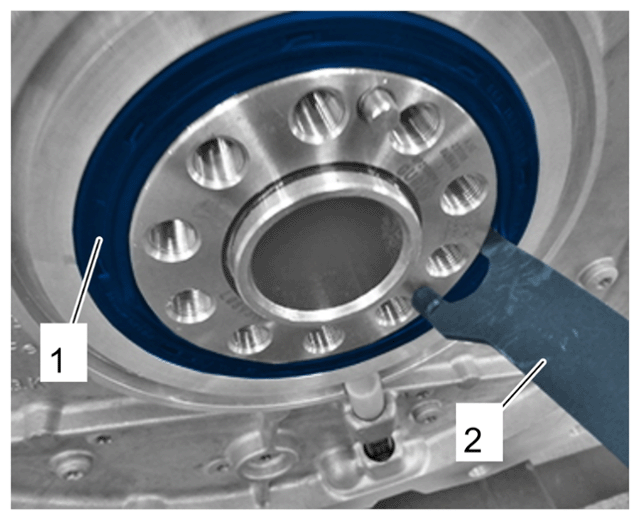

1. 1.1 Fit puller hook at two opposite positions and carefully lever off the sealing ring.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing sealing ring on flywheel side
Clean the crankshaft flange.
