Installing Sealing Ring

WARNING: This page is about a different variant/trim than selected.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Tools: > T10122 - Insertion tool for sealing ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

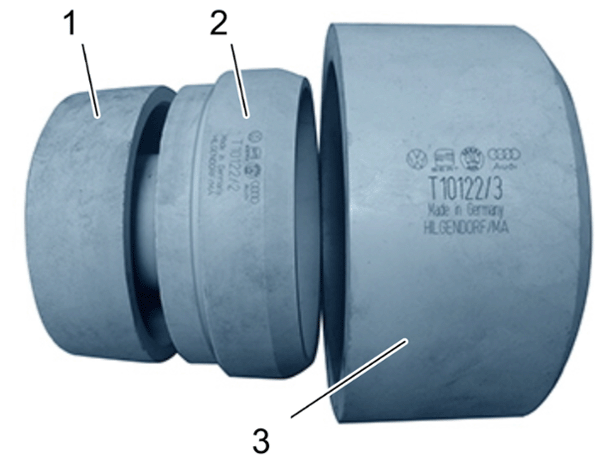

Tools for fitting sealing ring

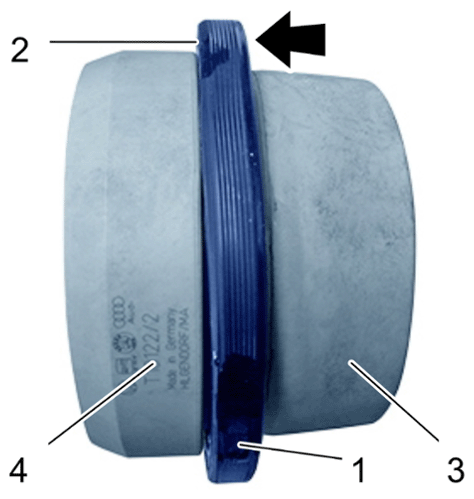

Slide new sealing ring -1- with the closed side -2- over the sleeve -3- onto the mounting -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sliding sealing ring onto mounting

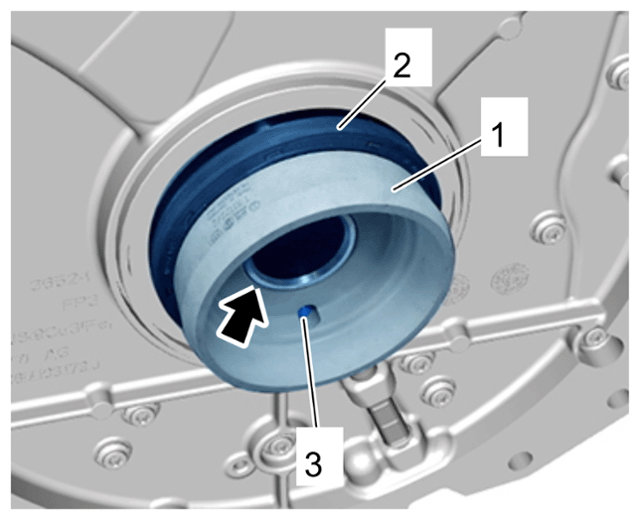

Fit mounting -1- with new sealing ring -2- on the crankshaft flange -arrow- . Check position of centring pin -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting on crankshaft flange

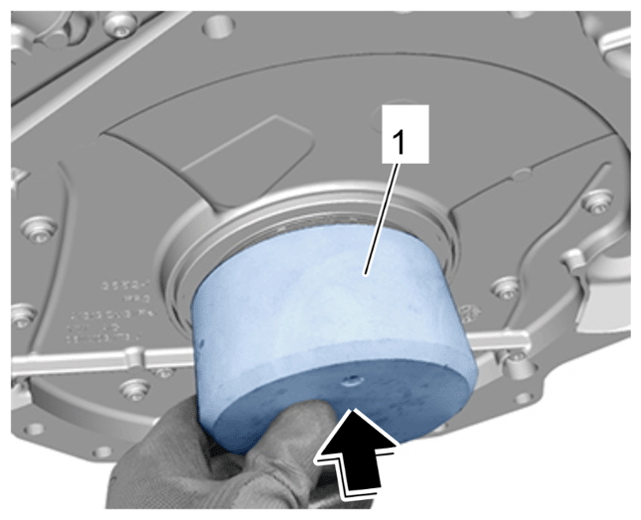

Tap in sealing ring with the pressure piece -1- as far as it will go using a plastic hammer -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tapping in sealing ring with pressure piece
