Removing Crankshaft

1. Remove oil pump chain drive.
   1. 1.1 Remove chain for oil pump drive -1-  from the crankshaft sprocket -2-  .
   2. 1.2 Unscrew screws on guide rail -3 and 4-  .
   3. 1.3 Remove guide rail.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

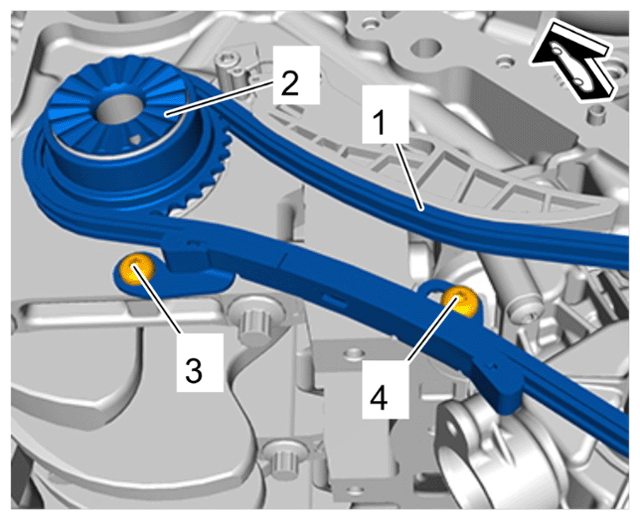

      Oil pump chain drive

2. Lock balance shaft bracing wheel -1-  .
   1. 2.1 > T40362 - Locking tool  must be inserted as far as it will go into the cut-out on the balance shaft bracing wheel -1-  . Then turn it 180° clockwise to lock the backlash compensation.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

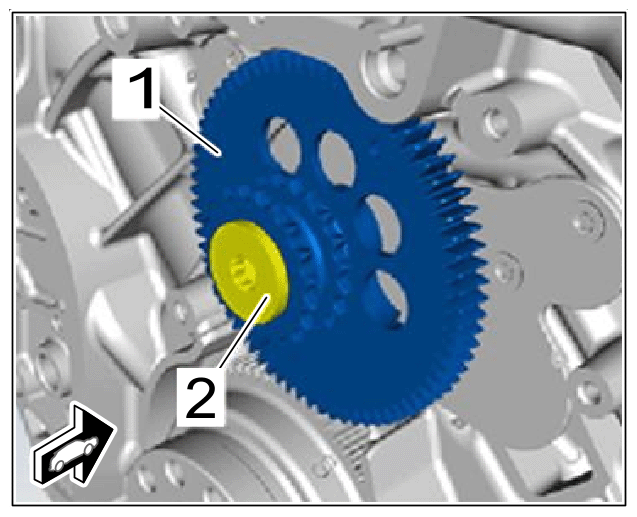

   Balance shaft bracing wheel

3. Mark crankshaft bearing covers using a colour marker.
4. Remove crankshaft.
   1. 4.1 Unscrew screws on crankshaft bearing covers -1 to 9-  .
   2. 4.2 Pull crankshaft bearing covers off the cylinder block using puller T40332.

      Information

      You will need a second mechanic to help you with this step.

   3. 4.3 Remove the crankshaft from the cylinder block and set it down on a clean surface.
   4. 4.4 Remove bearing shells and store them together with the bearing covers so that they cannot get mixed up.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

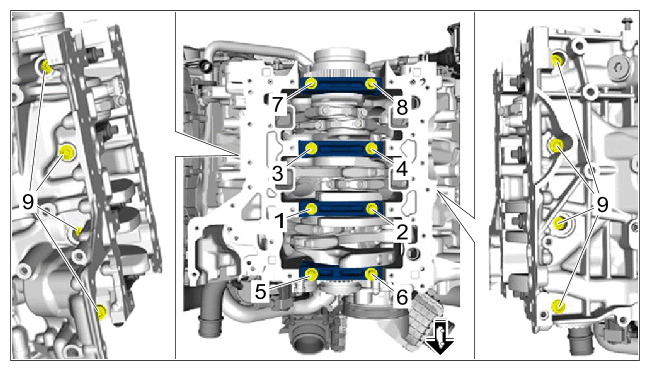

Crankshaft bearing covers
