Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install crankshaft.
> Removing and installing crankshaft (V6 Turbo)

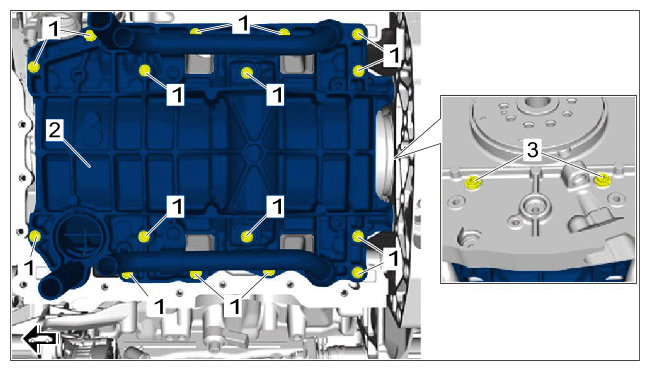

Install oil windage tray -2- .
1. 2.1 Position oil windage tray -2- on cylinder block.
2. 2.2 Replace screws for oil windage tray -1 and 3- .
3. 2.3 Fit screws securing oil windage tray to cylinder block -1- and tighten crosswise.
  Tighten M6 x 18 screws (3 ea.) to > Initial tightening 3 Nm (2 ftlb.) and > Final tightening + 90° .

  Tighten M6 x 30 screws (13 ea.) to > Initial tightening 3 Nm (2 ftlb.) and > Final tightening + 90° .
4. 2.4 Tighten screws securing chain housing cover to oil windage tray -3- to > Initial tightening 3 Nm (2 ftlb.) and > Final tightening + 90° .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil plate
Install oil guide housing.
> Removing and installing oil guide housing (V6 Turbo)
