Preliminary Work
WARNING: This page is about a different variant/trim than selected.
- Remove oil guide housing.
> Removing and installing oil guide housing (V6 Turbo)

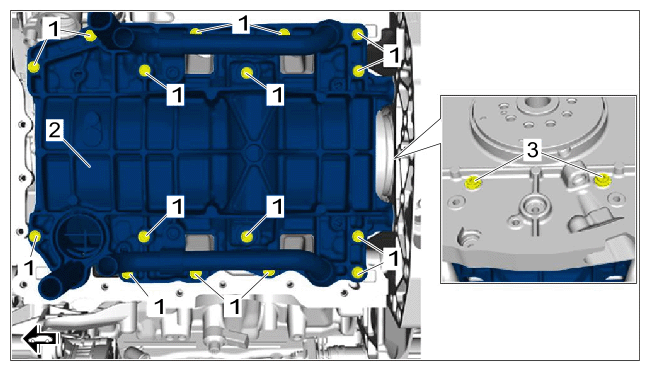

- Remove oil windage tray -2-
.
- 2.1 Unscrew screws for oil windage tray -1 and 3-
.
- 2.2 Remove oil windage tray -2-
from cylinder block.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Oil plate
