Assembling Pistons
WARNING: This page is about a different variant/trim than selected.
Information
- If re-using a piston, do not remove combustion residues on the piston crown mechanically.
- Clean the piston.
- Fit oil scraper ring.

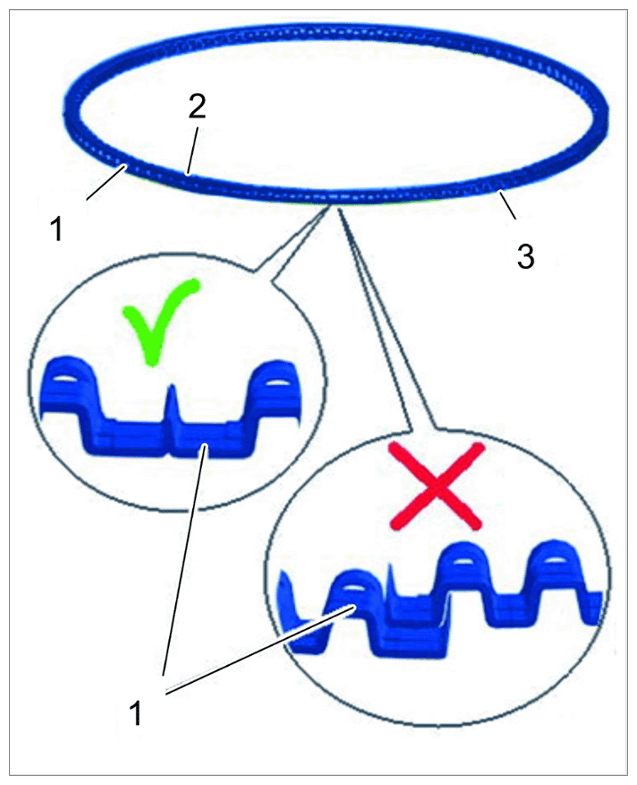

- 2.1 Insert spring -1-
into the groove on the piston so that the gaps are touching.
The gaps must not overlap.
- 2.2 Carefully spread the upper and lower lamella -2 and 3-
and push onto the piston.
Fit the upper gap in the oil scraper ring offset by 120° with respect to the adjacent compression ring.
Fitting oil scraper ring
- 2.1 Insert spring -1-
into the groove on the piston so that the gaps are touching.
- Allocate compression rings.

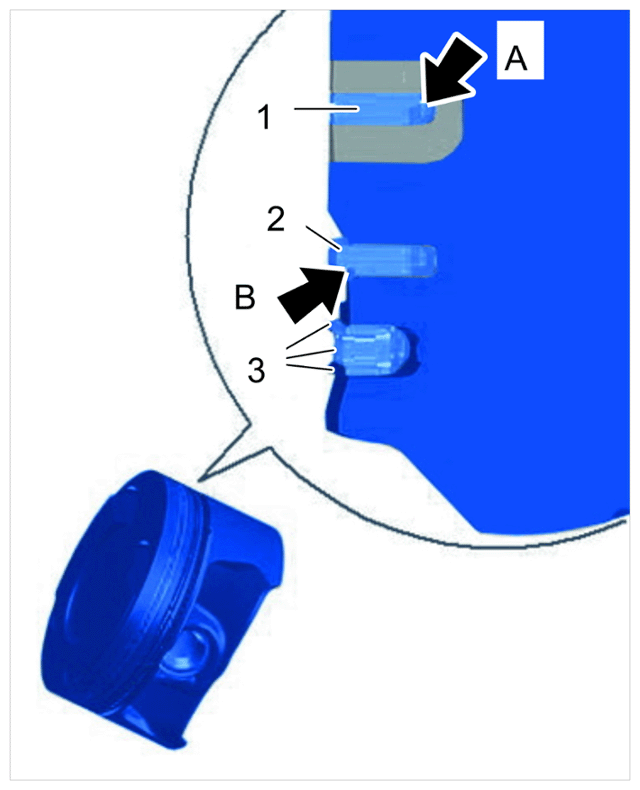

Compression ring -1- with chamfer -arrow A- at the inner top side.
Compression ring -2- with shoulder -arrow B- at the outer bottom side.
Oil scraper ring -3- (three parts).
Allocation of piston rings
CAUTION: Risk of engine damage if piston rings are overstretched!
→ Do not overstretch piston rings with the piston ring pliers. Only open up the piston rings until they just fit over the piston. - Fit compression rings -3-
.
- 4.1 Grip lower compression ring at the gap using > Nr.58 - piston ring pliers, size 1 .
- 4.2 Spread the piston ring just enough for it to fit over the piston -1- .

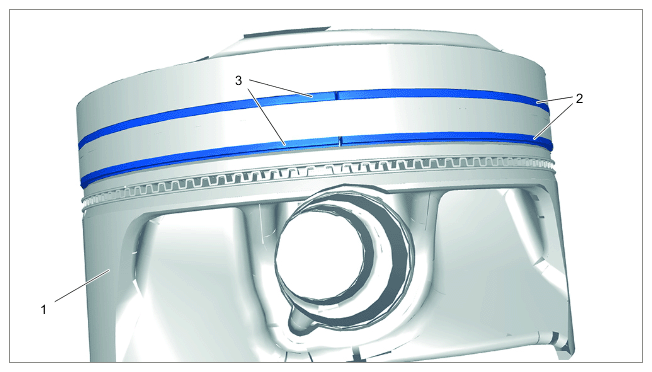

- 4.3 Insert compression ring -3- into the relevant groove -2- on the piston -1- .
- 4.4 Repeat the procedure for the upper compression ring.
Compression rings
- Check that the piston rings are correctly seated and positioned.
- Fit piston-pin circlip -1-
on one side.

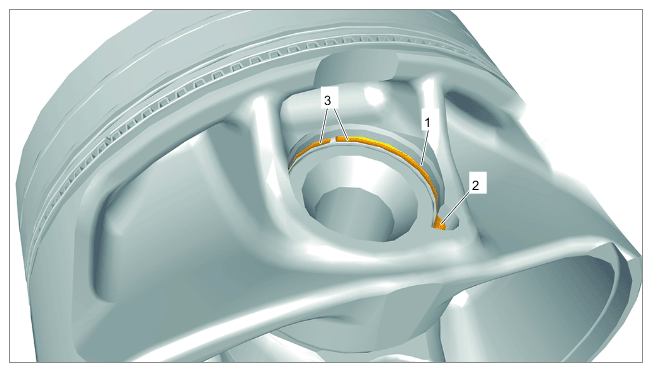

- 6.1 Insert new piston-pin circlip -1-
into the ring groove of the piston so that the ring gap -3-
is offset with respect to the piston crown (6 or 11 o'clock position).
Press one end -3- into the ring groove with your thumb.
- 6.2 Carefully lever the circlip -1- into the ring groove using a small screwdriver while continuing to press it down.
- 6.3 If the piston-pin circlip -1- cannot be levered correctly into the ring groove, lever the other end -3- into the ring groove first.
- 6.4 Check that the piston-pin circlip is seated correctly -1-
.
The piston-pin circlip must be inserted fully in the ring groove of the piston.
Piston-pin circlip
- 6.1 Insert new piston-pin circlip -1-
into the ring groove of the piston so that the ring gap -3-
is offset with respect to the piston crown (6 or 11 o'clock position).

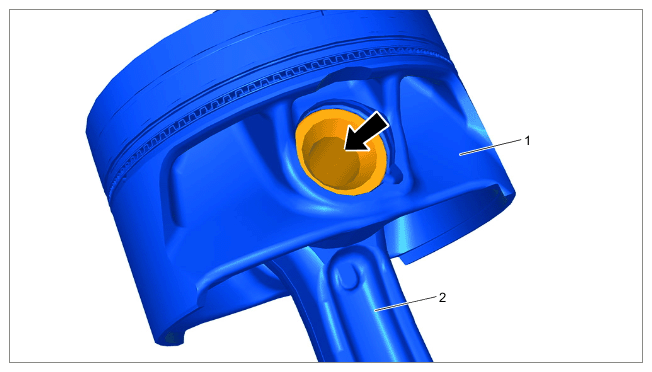

- Fit connecting rod -2- .
- Fit second piston-pin circlip -1-
.
- 8.1 Insert new piston-pin circlip -1-
into the ring groove of the piston so that the ring gap -3-
is offset with respect to the piston crown (6 or 11 o'clock position).
Press one end -3- into the ring groove with your thumb.
- 8.2 Carefully lever the circlip -1- into the ring groove using a small screwdriver while continuing to press it down.
- 8.3 If the piston-pin circlip cannot be levered correctly into the ring groove, lever the other end -3- into the ring groove first.
- 8.4 Check that the piston-pin circlip is seated correctly -1-
.
The piston-pin circlip must be inserted fully in the ring groove of the piston.
Piston-pin circlip
- 8.1 Insert new piston-pin circlip -1-
into the ring groove of the piston so that the ring gap -3-
is offset with respect to the piston crown (6 or 11 o'clock position).
- Check piston and connecting rod for smooth operation.
