Subsequent Work

WARNING: This page is about a different variant/trim than selected.

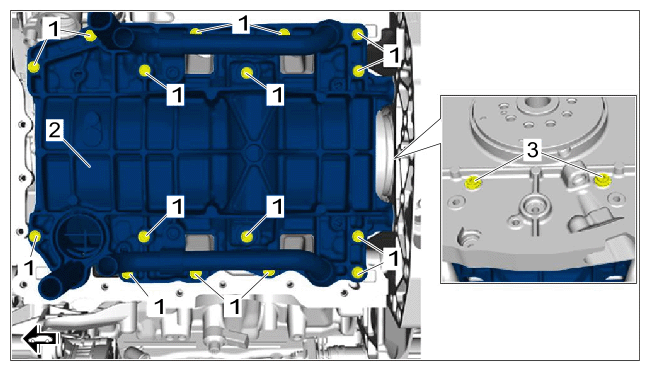

Install oil windage tray -2- .
1. 1.1 Position oil windage tray -2- on cylinder block.
2. 1.2 Replace screws for oil windage tray -1 and 3- .
3. 1.3 Fit screws securing oil windage tray to cylinder block -1- and tighten crosswise.
  M6 x 18 (3 ea.): Tighten to > Initial tightening 3 Nm (2 ftlb.) and > Final tightening + 90° .

  M6 x 30 (13 ea.): Tighten to > Initial tightening 3 Nm (2 ftlb.) and > Final tightening + 90° .
4. 1.4 Tighten screws securing chain housing cover to oil windage tray -3- to > Initial tightening 3 Nm (2 ftlb.) and > Final tightening + 90° .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil plate
Install oil guide housing.
> Removing and installing oil guide housing (V6 Turbo)
Install the relevant cylinder head.
> Removing and installing cylinder head (V6 Turbo)
