Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove the relevant cylinder head.

    > Removing and installing cylinder head (V6 Turbo)

  2. Remove oil guide housing.

    > Removing and installing oil guide housing (V6 Turbo)

  3. Remove oil windage tray -2-  .
    1. 3.1 Unscrew screws for oil windage tray -1 and 3-  .
    2. 3.2 Remove oil windage tray -2-  from cylinder block.

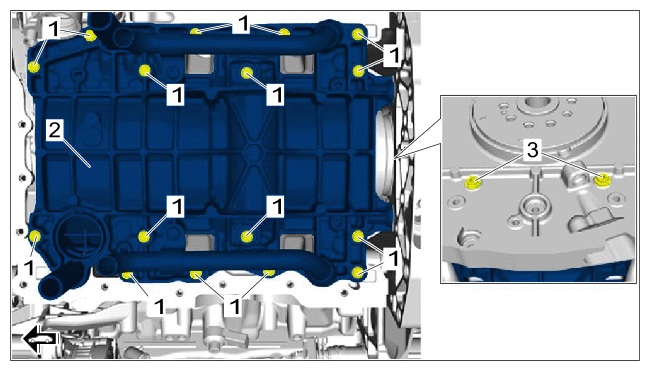

      G15822073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Oil plate
