Removing Accelerator Pedal Module

WARNING: This page is about a different variant/trim than selected.

Loosen accelerator pedal module -1- .

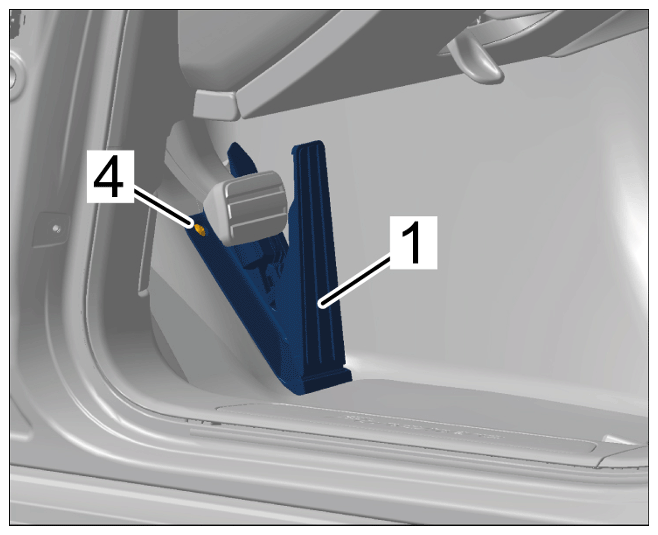

1. 1.1 Unscrew and remove screw -4- .
2. 1.2 Pull accelerator pedal module -1- forward slightly and remove it in an upward direction.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screw

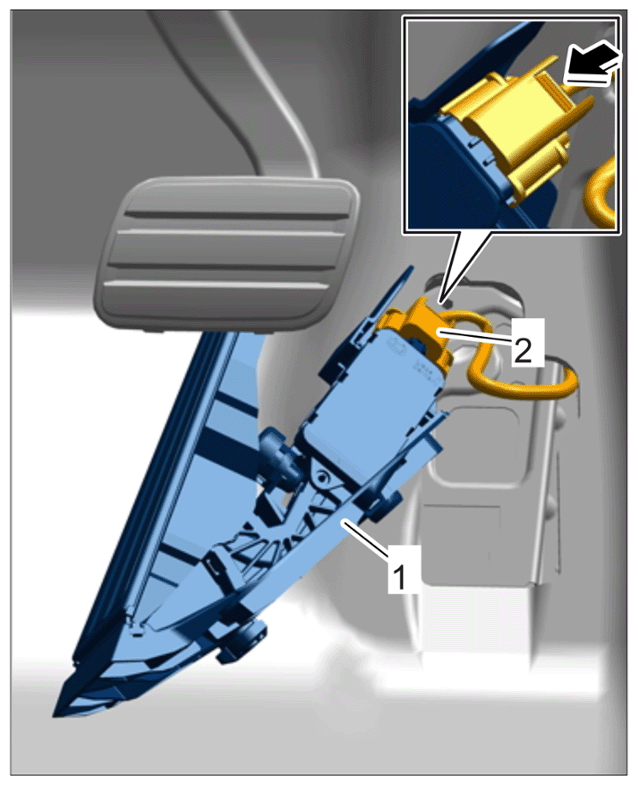

Release and disconnect electric plug connection -2- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing accelerator pedal module
Remove accelerator pedal module.
