Removing Control Unit For Fuel Pump

WARNING: This page is about a different variant/trim than selected.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

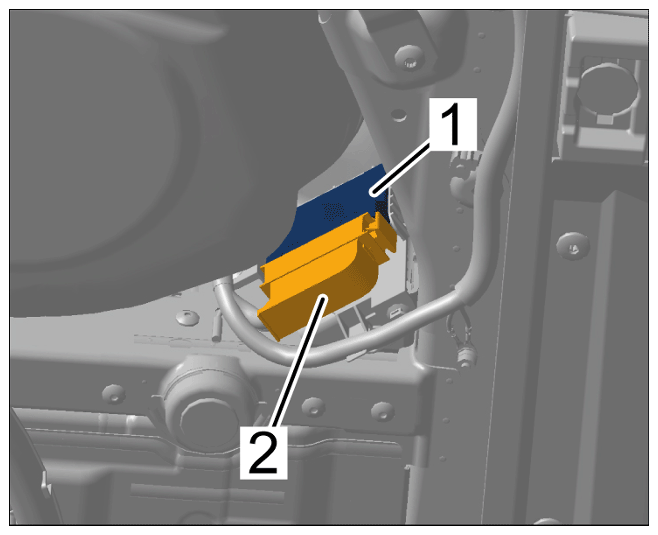

Release and disconnect electric plug connection -2- on control unit for fuel pump -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection

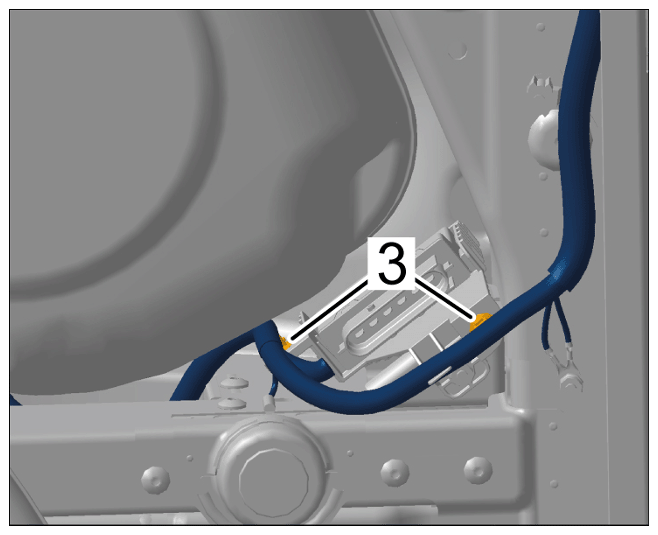

Unclip line bracket -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping line bracket

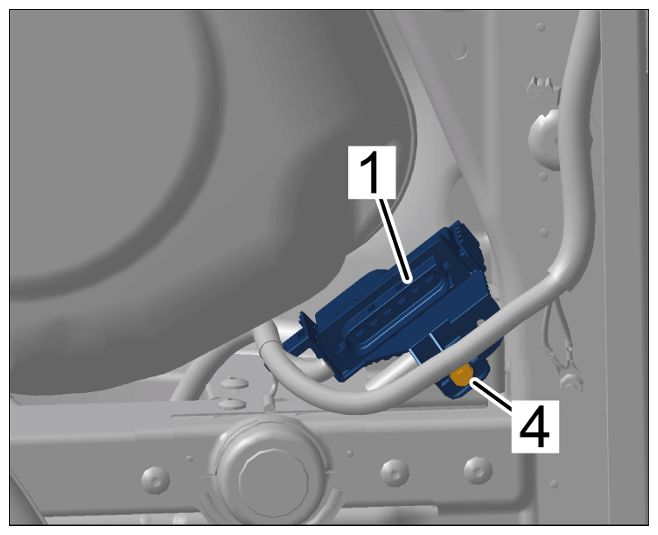

Unscrew nut -4- and remove holder with control unit for fuel pump -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing control unit for fuel pump

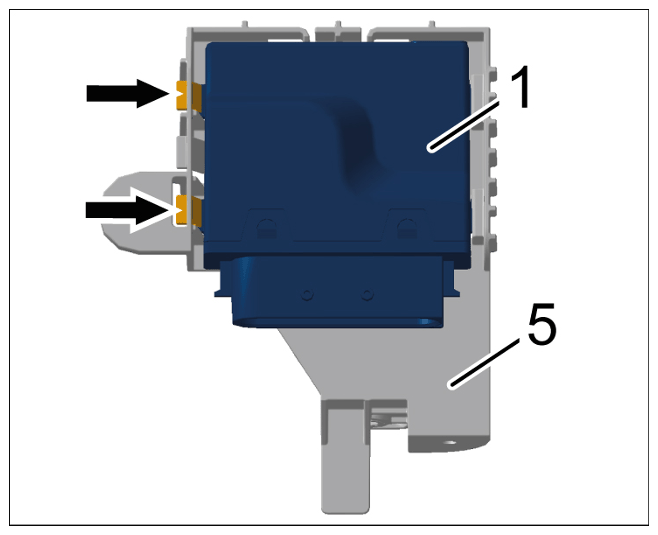

Unclip control unit for fuel pump -1- from holder -5- (-arrows- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping control unit for fuel pump
