Removing Carbon Canister

WARNING: This page is about a different variant/trim than selected.

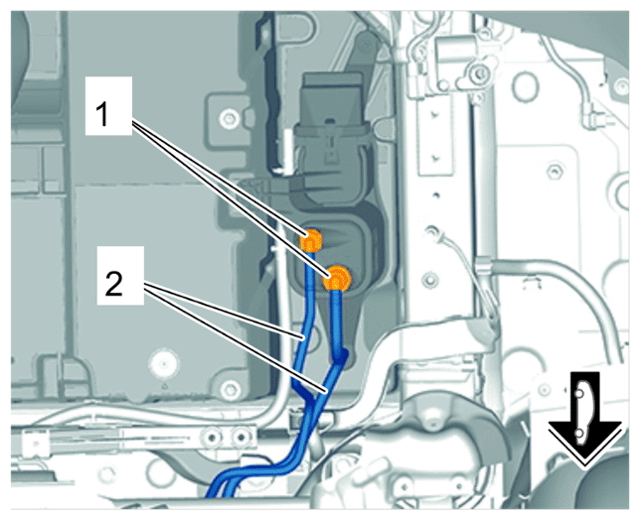

Release and disconnect quick connectors -1- .
Set lines -2- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lines on carbon canister
Screw off fastening nuts -3, 2 and 1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts for carbon canister
Only for USA vehicles:

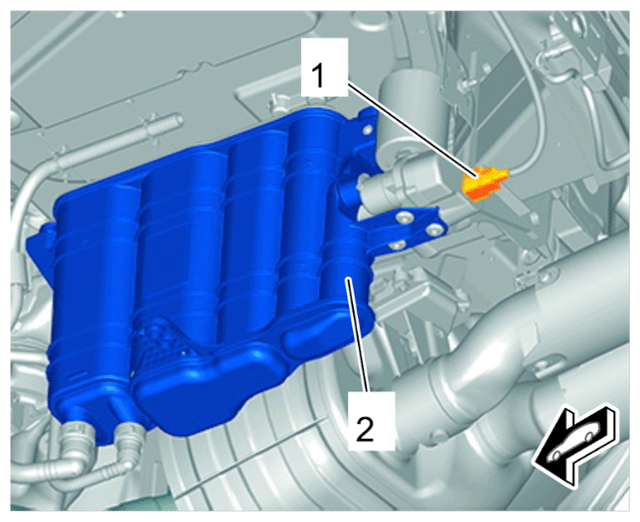

Release and disconnect electric plug connection -1- for the leakage diagnosis pump at the carbon canister -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for leakage diagnosis pump

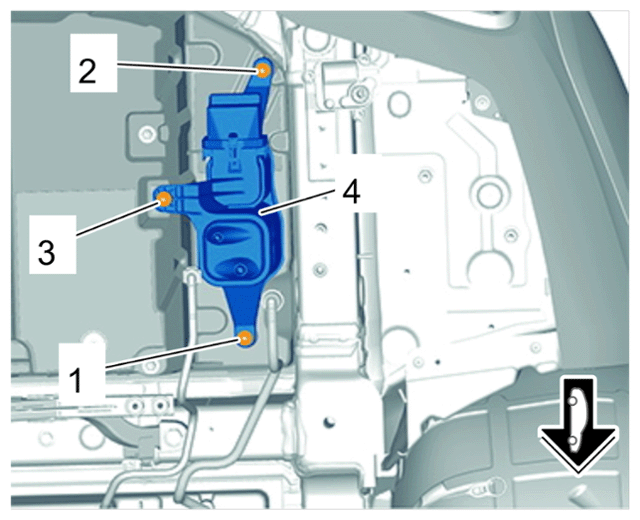

Remove carbon canister -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister
