Installing Carbon Canister
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order to removal.
- 1.1 Observe tightening sequence -1, 2, 3-
for nuts on the carbon canister -4-
.
Nuts on carbon canister, top > Tightening torque 6 Nm (4.5 ftlb.)
Nut on carbon canister, bottom > Tightening torque 6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

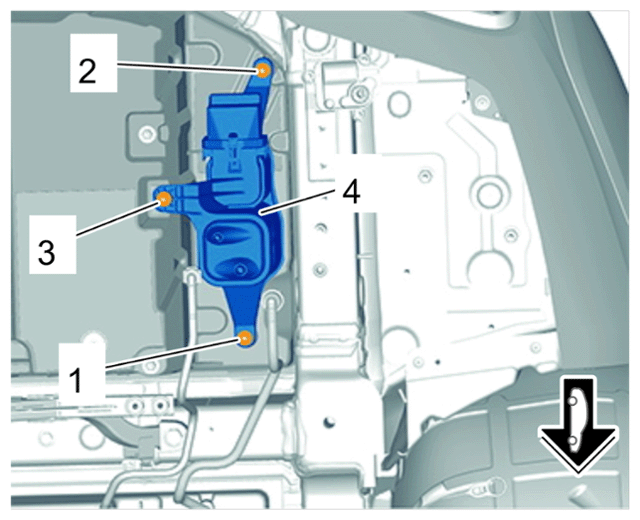

Tightening sequence for fastening nuts on carbon canister
- 1.1 Observe tightening sequence -1, 2, 3-
for nuts on the carbon canister -4-
.
