Installing Fuel Level Sender

WARNING: This page is about a different variant/trim than selected.
WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion

    → Avoid contact with hot parts or sources of ignition.

    → Use suction to remove ignitable vapors.

    → Attach warning sign in a clearly visible position.

    → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

    → Secure collection containers/vessels to prevent them from tipping over.

  1. Install fuel level sender -1-  .
    1. 1.1 Clip in electric line -3-  along the anti-swirl chamber -2-  .
    2. 1.2 Engage fuel level sender in holder -arrow A-  in the guide.

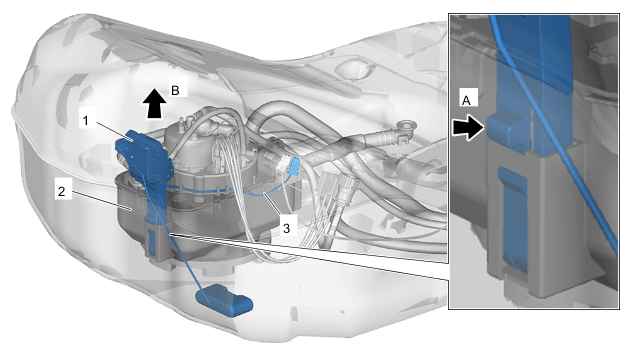

    G15877257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing fuel level sender

  2. Connect electric connections -2 to 4-  at the flange and check that they are fitted securely.
    1. 2.1 Insert flange with a new seal.

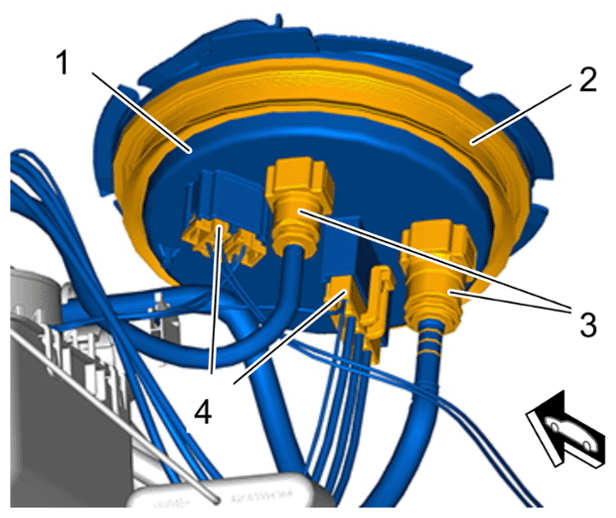

    G15877258Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel tank flange connections at the bottom

  3. Secure locking ring on the flange.
    1. 3.1 Observe marking made during removal.
    2. 3.2 Tighten flange ring using > T10202 - wrench  .

      > Tightening torque 110 Nm (81.5 ftlb.) +/- 5 Nm (3.5 ftlb.)

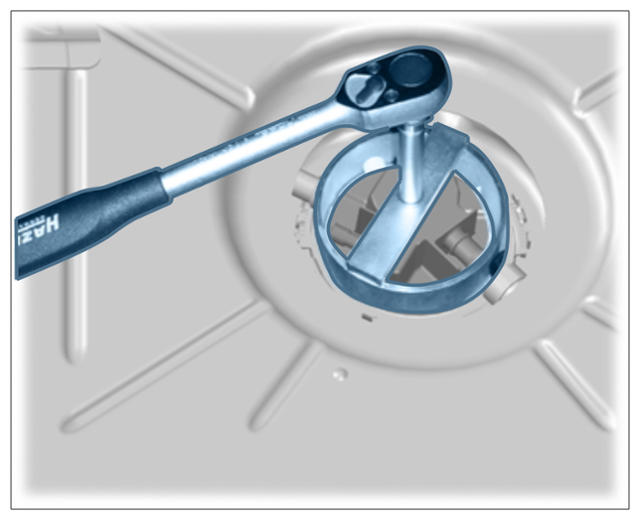

      G15877259Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Loosening flange ring

  4. Connect connections on the flange cover at the top and check that they are fitted securely.
  5. Install cover on the body.
