Remove Fuel Tank

WARNING: This page is about a different variant/trim than selected.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

→ Secure collection containers/vessels to prevent them from tipping over.

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin
→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Wear personal protective gear.

→ Do not smoke, eat or drink in the work area.

Information

Escaping fuel must be soaked up using suitable binding material.
The fuel system must be depressurized before starting work on it.
Only work on the fuel system in well-ventilated rooms.
Any seals that were removed must always be replaced.
Never use sealant containing silicone or silicone spray when the injection system is open. Traces of silicone drawn in by the engine are not combusted and damage the oxygen sensors.

Have suitable aids ready to collect emerging fuel and have suitable stoppers ready for closing off the fuel lines and the relevant connection openings.

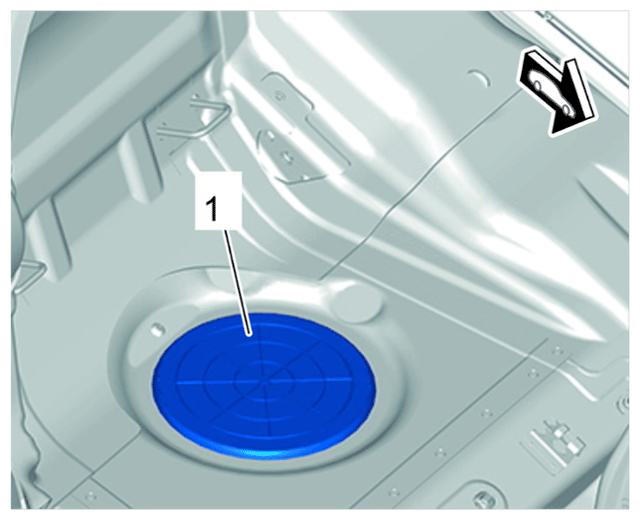

Remove cover -1- in the floorpan close to the removed right rear seat.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover in floorpan

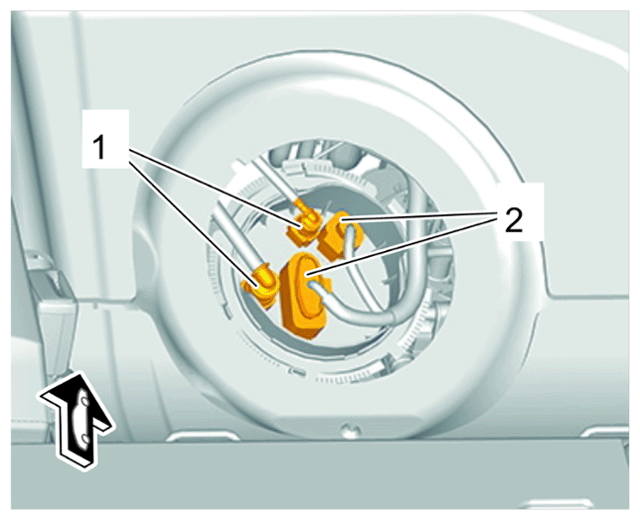

Disconnect fuel tank connections.
1. 3.1 Release and disconnect plug-in couplings -1- for the fuel lines.
2. 3.2 Close off fuel lines and connection openings using suitable stoppers.
3. 3.3 Release and disconnect electric plug connections -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel tank connections in opening in floorpan

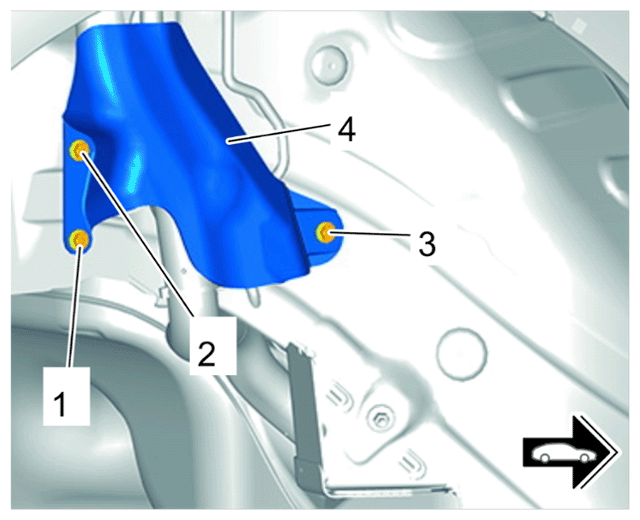

Remove protective cover -4- .
1. 4.1 Unscrew fastening screws -3, 2 and 1- .
2. 4.2 Remove protective cover -4- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Protective cover for filler tube

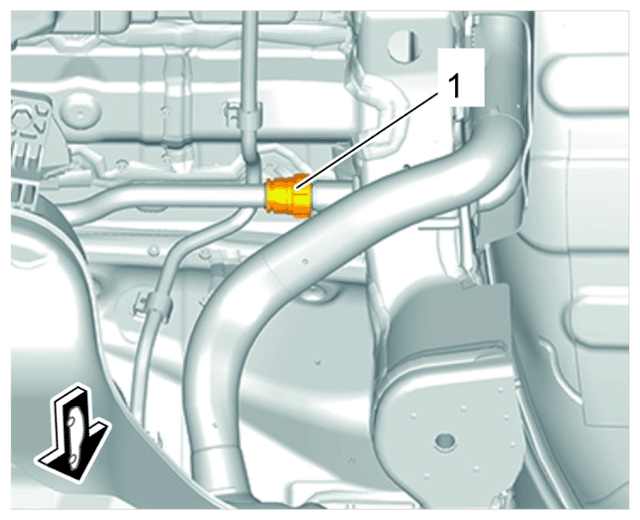

Release and disconnect plug-in coupling -1- and collect emerging fuel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel tank connection on underbody

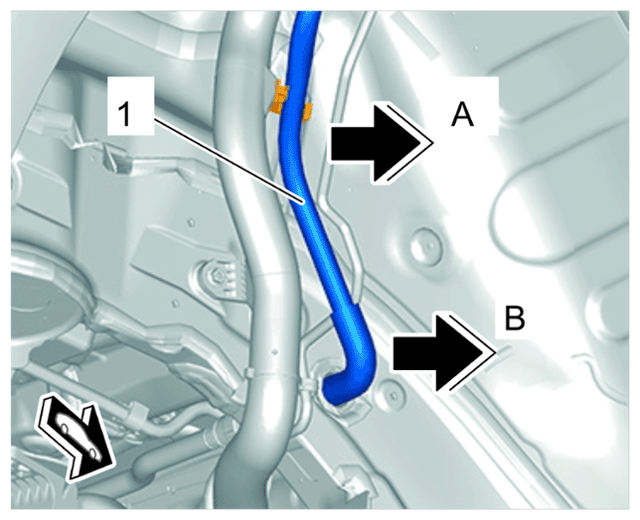

Unclip vent line -1- from fuel filler pipe -arrow A- and pull it out of the body -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line on fuel tank

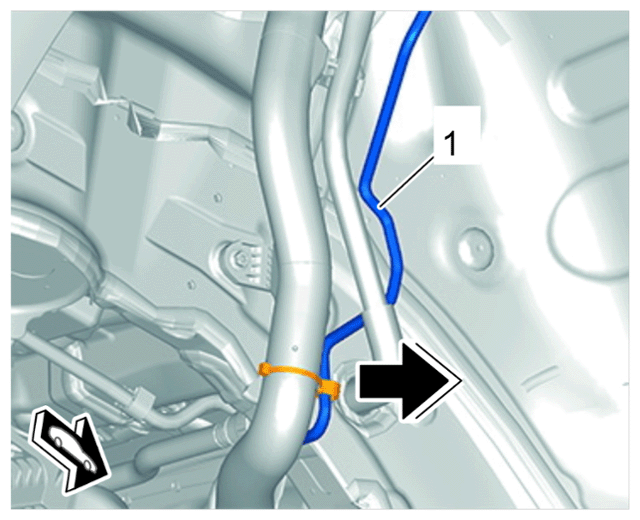

Unclip hose -1- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping hose

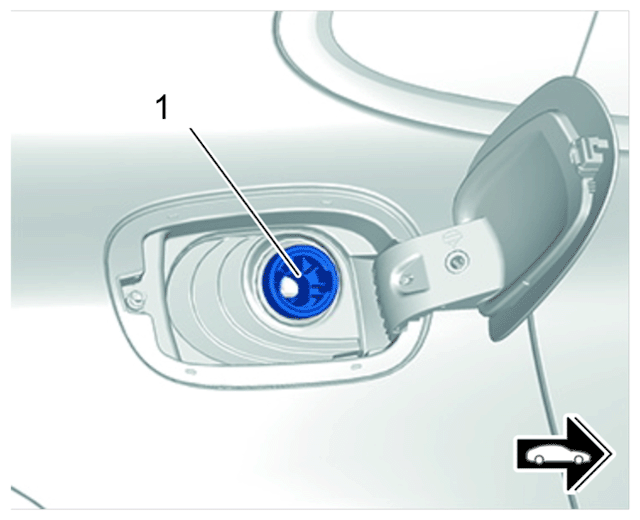

Remove cap -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cap for filling

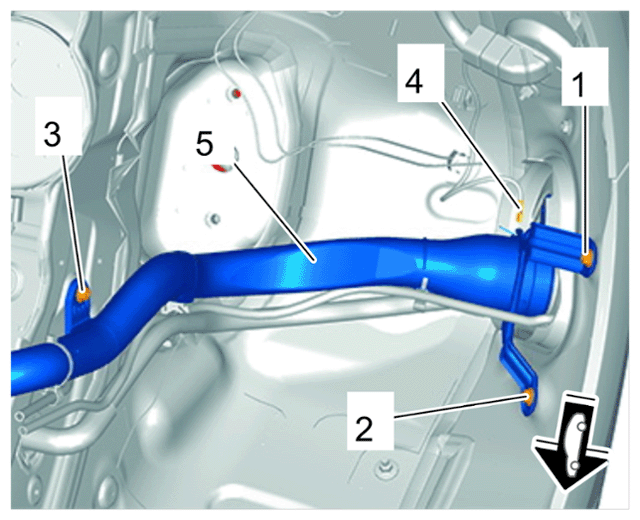

Remove fuel filler tube -5- .
1. 9.1 Unscrew fastening screws -3, 2 and 1- .
2. 9.2 Disconnect electric plug connection -4- .
3. 9.3 Disconnect fuel filler tube -5- with holders from the body.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel filler tube

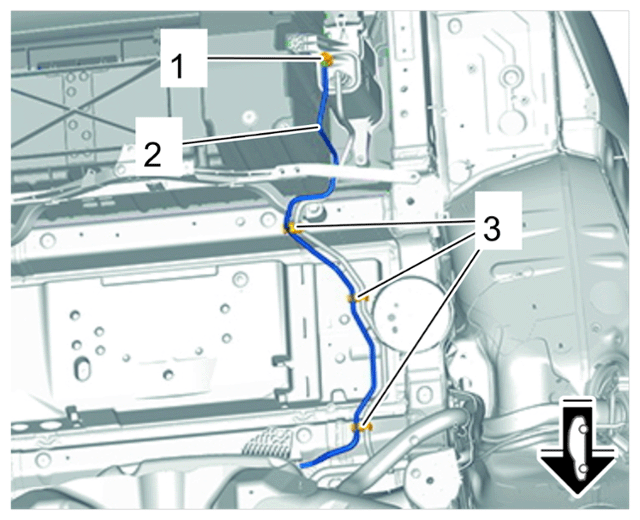

Remove carbon canister line -2- .
1. 10.1 Release and disconnect quick connector -1- .
2. 10.2 Unclip carbon canister line -2- from holders -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister line

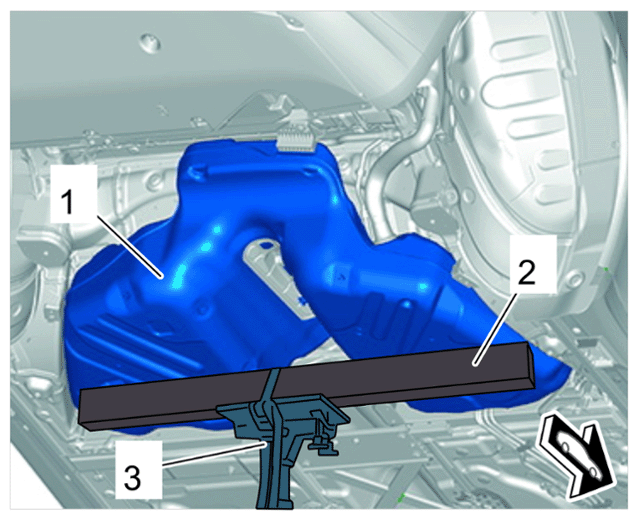

Support the fuel tank -1- using a suitable base -2- and transmission jack -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Supporting fuel tank

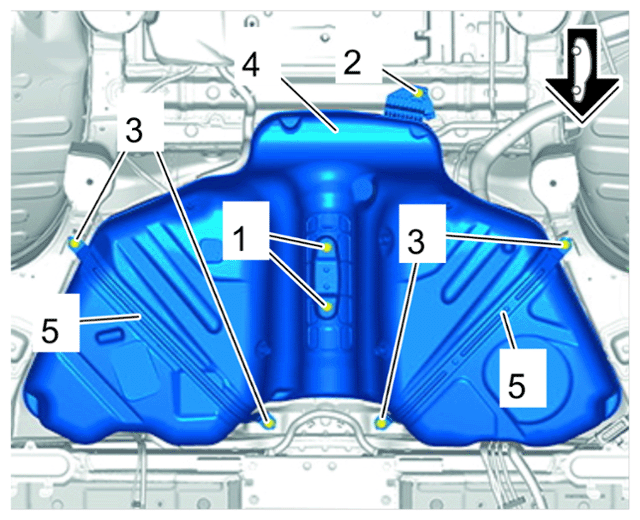

Remove fuel tank -4- .
1. 12.1 Unscrew fastening screws -1, 2 and 3- .
2. 12.2 Carefully lower the transmission jack and hold fuel tank -4- with carbon canister line securely.
3. 12.3 Remove the fuel tank -4- and restraining straps -5- from the base.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for fuel tank
