Tool Information
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

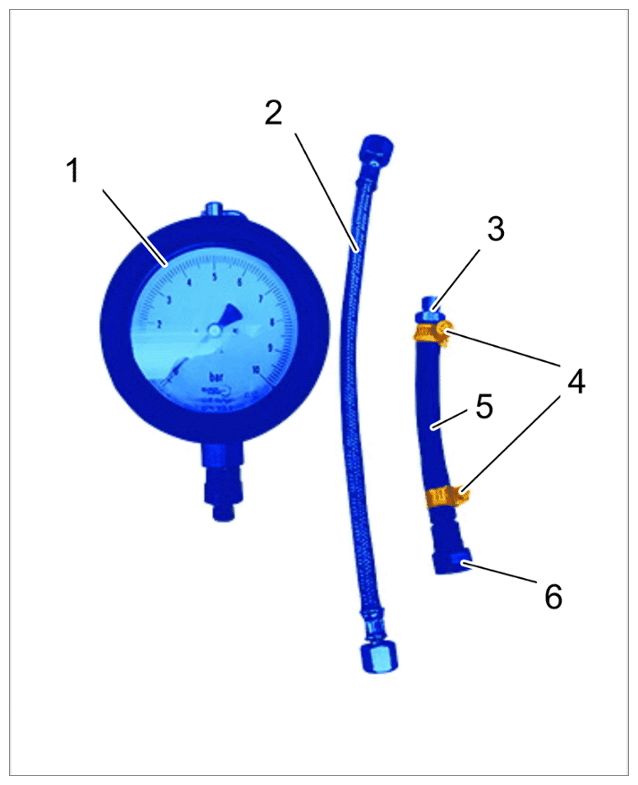

Test tool for fuel delivery pressure
| 1 |
> P378a - Pressure gauge |
| 2 |
> P378c - Connecting lines |
| 3 |
Connection adapter no. 10 from > V.A.G 1318 - K-Jetronic Tester |
| 4 |
Hose clamps (2x), e.g. Part No.: 999.512.651.09 |
| 5 |
Hose, e.g. Part No.: 996.106.267.03 |
| 6 |
Ties, e.g. Part No.: 996.106.253.00 |
