Subsequent Work
WARNING: This page is about a different variant/trim than selected.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapors.
→ Attach warning sign in a clearly visible position.
→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
→ Secure collection containers/vessels to prevent them from tipping over.
WARNING:
Caustic fluids
- Danger of chemical burns
→ Wear personal protective gear.
→ Ensure that there is good ventilation.
→ Avoid contact with caustic fluid.
→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

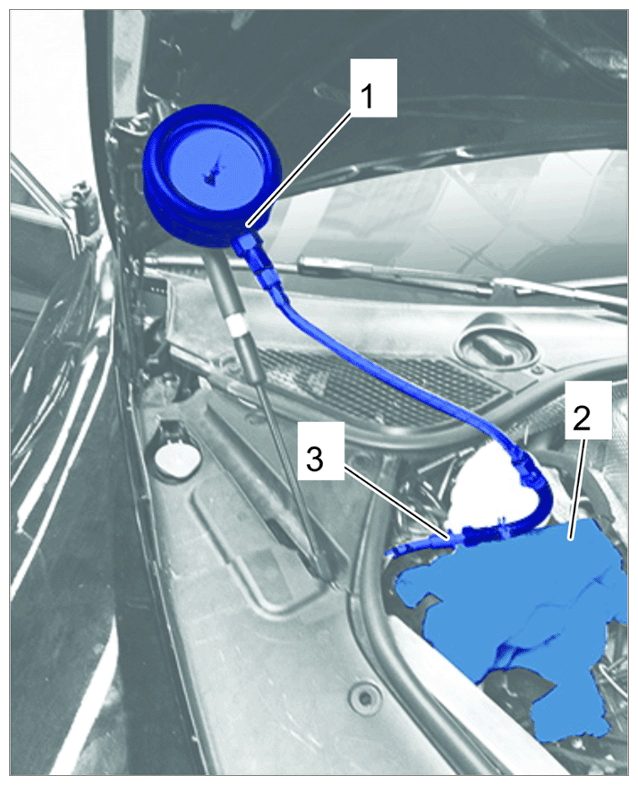

- Remove test tool -1-
.
- 1.1 Release and disconnect plug-in coupling for test tool -3-
. Collect emerging fuel.CAUTION: Residual pressure can cause fuel to spray out! Wear protective goggles.
- 1.2 Remove test tool -1- .
- 1.3 Connect fuel low-pressure line. Check that the plug-in coupling is fitted securely.
- 1.4 Remove cloth -2- .
Checking fuel delivery pressure
- 1.1 Release and disconnect plug-in coupling for test tool -3-
. Collect emerging fuel.
- Fit cover on fuse carrier F in the engine compartment at the front right.
- Switch on ignition (fuel pump is activated briefly) and visually inspect the fuel line for leaks.
- Switch off the ignition.
- Remove the charger.
- Remove warning sign.
