Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Remove all test tools.
Connect supply line -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

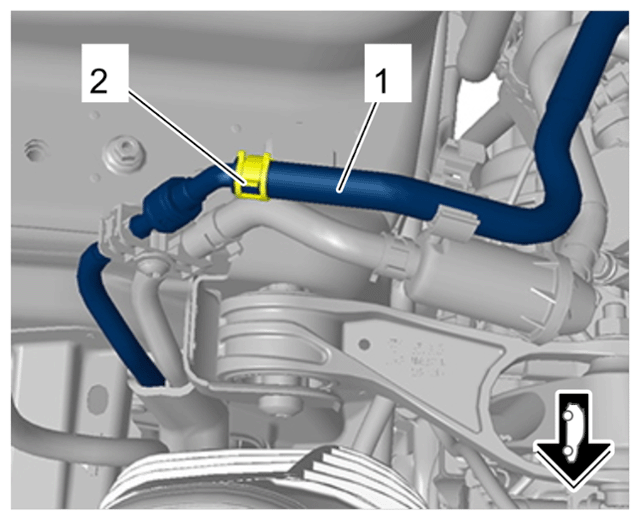

Supply line - engine compartment connection point (shown on the Macan as an example)
1. 2.1 Connect connection point for supply line -1- .
2. 2.2 Fasten spring band clamp -2- using > VAS 6890 - spring band clamp pliers .
Connect vehicle electrical system battery.
> WM, 270619 REMOVING AND REINSTALLING BATTERY
Install engine cover (design cover).
> 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)
