Removing Wheel

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel assembly pins (PCCB brake)

• On vehicles with ceramic brake discs (PCCB), use two assembly aids (threaded bolts for fitting wheel) -1- in order to rule out any possibility of heavy contact of the wheel with the brake disc!
• The assembly aids must be ordered using the Porsche Electronic Parts Catalogue (PET).
• Vehicles with Tyre Pressure Monitoring (TPM): Every new set of wheels or wheel change must be communicated to the control unit (even if the new wheels have the same specifications as the old ones). To do this, select >>TPM, Settings, Tyre type and Tyre size << in the main menu on the instrument cluster and confirm your selection. The control unit then stores these values while the vehicle is driving (at more than 25 km/h (16 mph)). The current tyre pressure is not available during this time.
• For information on teaching the TPM system, see

  > 4X00IN GENERAL INFORMATION ON THE TYRE PRESSURE MONITORING SYSTEM (TPM)

• To make fitting easier, a wheel fitting trolley can be used.

Information

The use of power tools (impact bolter) for loosening and securing the wheel bolts is not permitted.

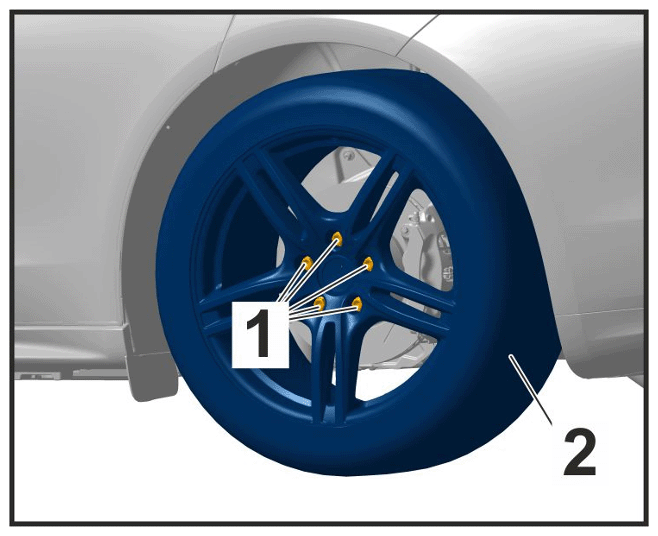

1. Loosen wheel bolts -1-  on the wheel -2-  (do not unscrew fully!).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wheel mounting

2. Lift the vehicle.

   > 4X00IN LIFTING THE VEHICLE

   NOTE: Removing/fitting wheels

   • Risk of damage to (ceramic) brake discs

     → Use two assembly pins when removing and fitting the wheel.

     → Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

3. Unscrew wheel bolts and remove wheel.
