Removing Engine Cover (Design Cover)

WARNING: This page is about a different variant/trim than selected.
NOTE: Components not fitted when engine is running or during test drive
  • Risk of damage to components due to reduced cooling performance

    → Before starting the engine, make sure that all air-supply components are completely fitted.

    → Only start the engine when the heat shields and design cover are fitted.

    → Only test-drive the vehicle when all underbody panelling, heat shields and the design cover are fitted.

  1. Carefully pull the design cover -1-  off the four fastening points one at a time -arrows-  .

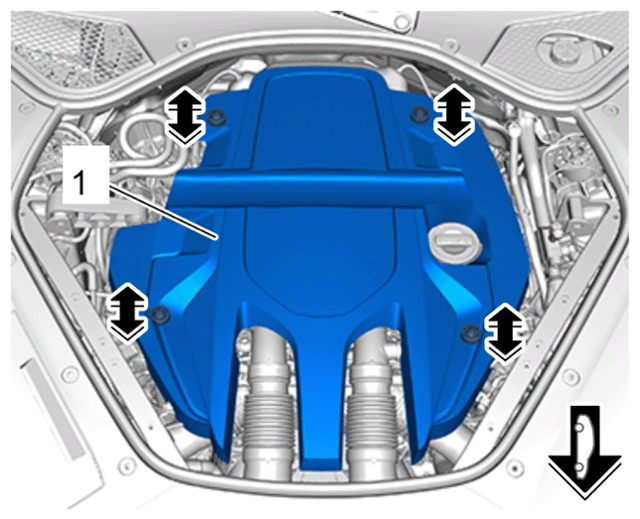

    G15822063Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Design cover

  2. Set design cover -1-  down with the visible side on a soft surface -2-  and check it.
    1. 2.1 Check heat insulation, spotwelds and air baffle plates for damage.
      1. 2.1.1 Replace design cover if it is damaged.
    2. 2.2 Check rubber elements -3-  for damage and replace them if necessary.

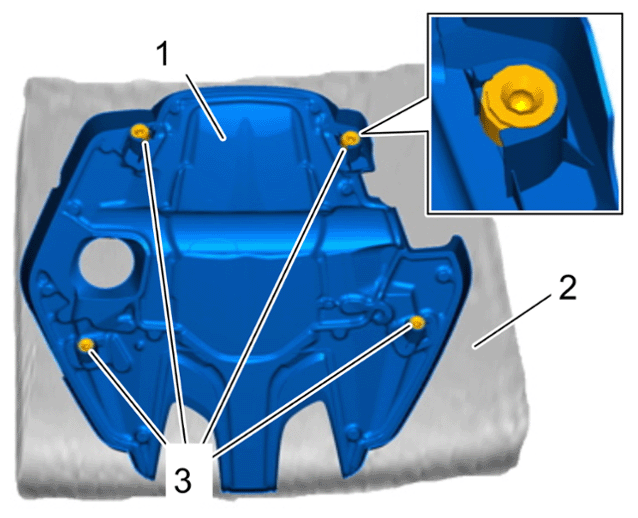

G15822064Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Design cover from below
