Removing Oil Mist Separator

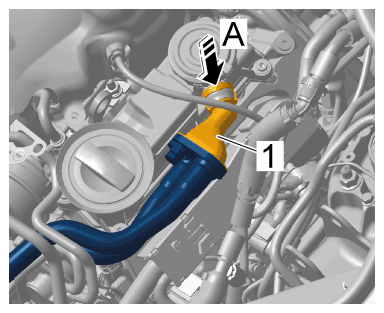

1. Press release button on both sides -arrow A-  and loosen adapter -1-  on the oil mist separator.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening adapter on oil mist separator

2. Press vacuum hose aside.
3. Remove oil mist separator -1-  .

   Information

   Screws on the oil separator are permanently connected. If screws are damaged, press the screws out of the oil separator and replace them.

   1. 3.1 Loosen screws -2 to 7-  .
   2. 3.2 Remove oil mist separator -1-  .

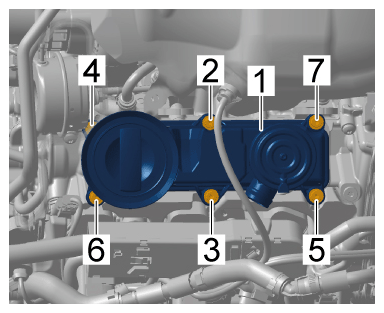

Fig 1: Oil Mist Separator Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing oil mist separator
