Removing Engine Mounting
WARNING: This page is about a different variant/trim than selected.
Information
The steps described here are shown on one cylinder bank, but also apply for the opposite side.
- Remove engine mount -1-
.
- 1.1 Unscrew screws on engine mount -2-
.
- 1.2 Remove engine mount -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

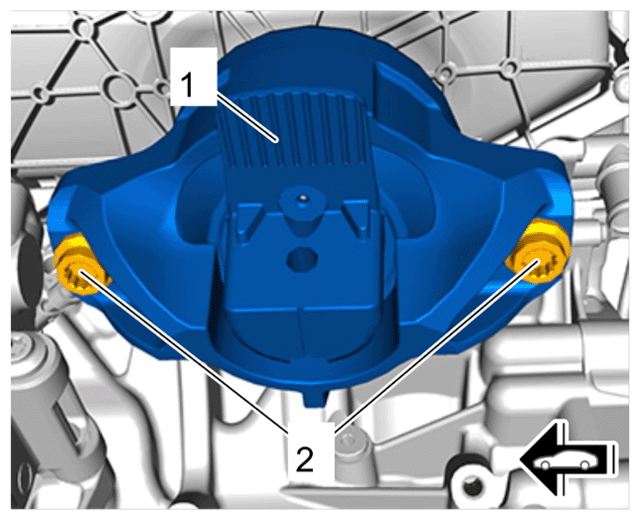

Engine mount on engine
