Removing Crankcase Cover

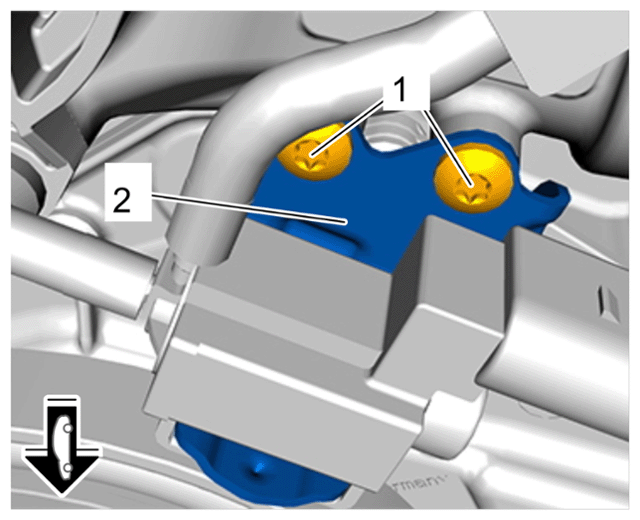

1. Unscrew screws on holder for change-over valve -1-  and move holder -2-  aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection holder

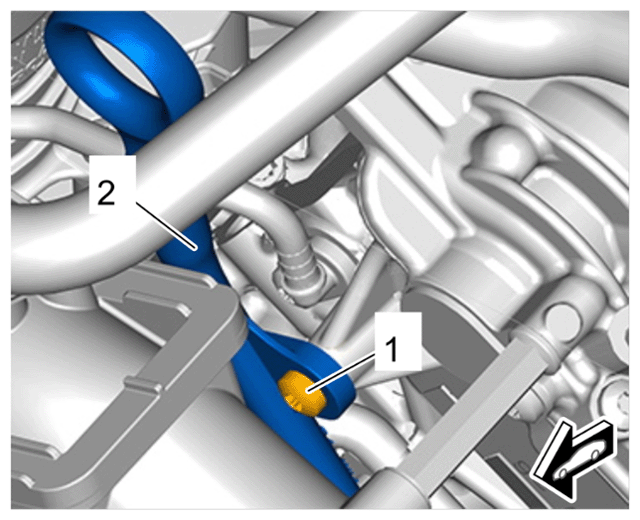

2. Remove guide for oil dipstick -2-  .
   1. 2.1 Unscrew screw on guide for oil dipstick -1-  .
   2. 2.2 Pull guide for oil dipstick -2-  out of the crankcase cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil dipstick

3. Remove crankcase cover -18-  .
   1. 3.1 Unscrew screws on crankcase cover -1 to 17-  .
   2. 3.2 Screw a screw for the crankcase cover -18-  into each of the threaded bores -Arrows-  by hand.
   3. 3.3 Tighten screws carefully and uniformly in order to loosen the crankcase cover -18-  from the bonding.
   4. 3.4 Remove crankcase cover -18-  and remove screws from the threaded bores -Arrows-  .

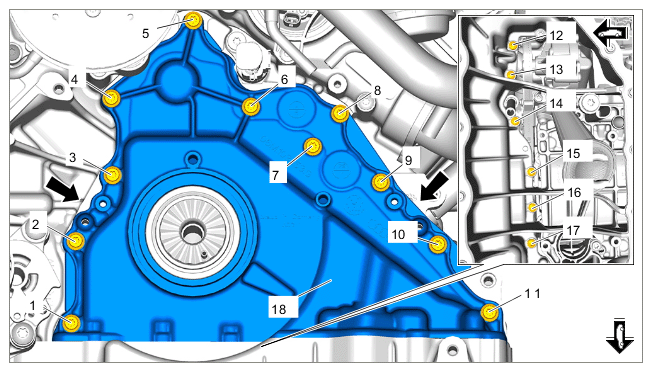

Fig 1: Crankcase Cover Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankcase cover
