Mounting Engine

WARNING: This page is about a different variant/trim than selected.

Mount engine on front-axle carrier.
1. 1.1 Lower engine with workshop crane and > 3033 - lifting tackle onto the front-axle carrier and move it into installation position.

Left side of engine:

2.1 Only for all-wheel drive vehicles:
Carefully guide in drive shaft -1- and insert it into the all-wheel final drive console -2- (-arrow- ). Check that the drive shaft is seated securely.

→ 404119 REMOVING AND REINSTALLING FRONT DRIVE SHAFT

2.2 Fit engine mount -4- on engine carrier -5- .

2.2.1 Fit and tighten screw -3- .

V8 biturbo & V6 Turbo engine: > Initial tightening 70 Nm (52 ftlb.)

V8 biturbo & V6 Turbo engine: > Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

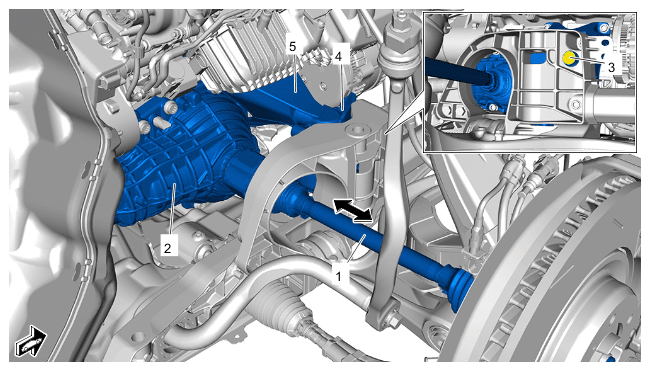

Drive shaft and left engine mount (V8 biturbo engine)

Right side of engine:

3.1 Only for all-wheel drive vehicles:
Carefully guide in drive shaft -1- and insert it into the all-wheel final drive -2- (-arrow- ). Check that the drive shaft is seated securely.

→ 404119 REMOVING AND REINSTALLING FRONT DRIVE SHAFT

3.2 Fit engine mount -4- on engine carrier -5- .

3.2.1 Fit and tighten screw -3- .

V8 biturbo & V6 Turbo engine: > Initial tightening 70 Nm (52 ftlb.)

V8 biturbo & V6 Turbo engine: > Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

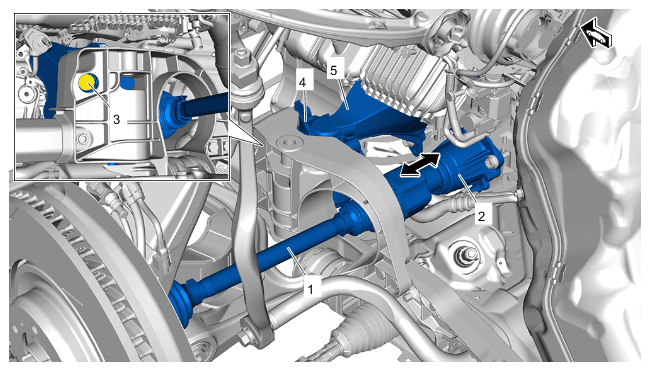

Drive shaft and right engine mount (V8 biturbo engine shown)
