Subsequent Work: Notes

→ Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)

1. 2.1 Position air guide -2-  and secure with clips.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide at top of radiator frame

→ 242719 REMOVING AND INSTALLING AIR-CLEANER COWL

1. 3.1 Tighten screw-type clamps -3-  .

   Screw-type clamp securing cowl to air cleaner housing: > Tightening torque 5 Nm (3.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air-cleaner cowl

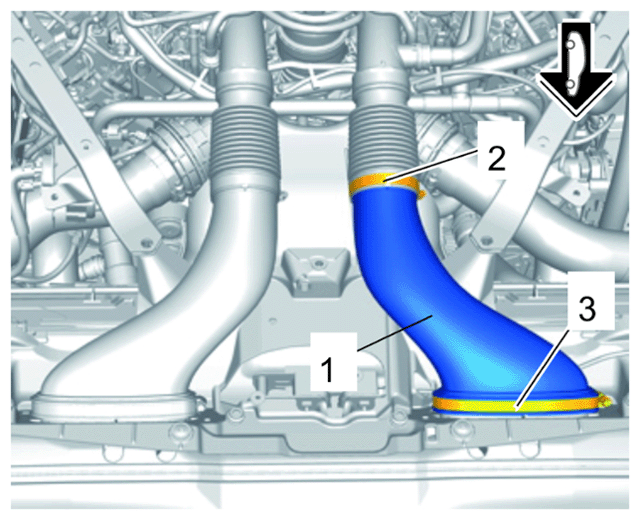

1. 4.1 Connect intake scoops and tighten screw-type clamps -2-  .

   Screw-type clamp on air box for intake pipe: > Tightening torque 3.5 Nm (2.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake scoop

→ 108319 Removing and installing engine cover (Design Cover) (V8 biturbo)

→ 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V6 BITURBO)

→ WM, 700219 REMOVING AND REINSTALLING FRONT TRIM PANEL (ENGINE COMPARTMENT)

→ WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

→ 393519 REMOVING AND INSTALLING REAR CARDAN SHAFT

→ WM, 386219 REMOVING AND INSTALLING ATF COOLING LINE (REAR SECTION)

→ WM, 875019 REMOVING AND INSTALLING CONDENSER

→ 260119 REMOVING AND INSTALLING EXHAUST SYSTEM

→ 193817 DRAINING AND FILLING COOLANT

→ WM, 870317 DRAINING AND FILLING REFRIGERANT R1234YF

→ 170101 CHECKING ENGINE OIL

→ 270619 REMOVING AND INSTALLING BATTERY

→ Tightening torque 6 Nm (4.5 ftlb.)

→ 370235 CHECKING AND TOPPING UP ATF

→ 449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT

After the cooling system has cooled down again, check the engine coolant level in the reservoir and top up to the Maximum mark if necessary.
