Preliminary Work

WARNING: This page is about a different variant/trim than selected.

CAUTION: Heavy components

Risk of squashing
→ Wear personal protective gear.

→ Get someone to help if necessary.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
→ Secure components to prevent them from falling down.

Information

The pictures shown in this document may differ from the original.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

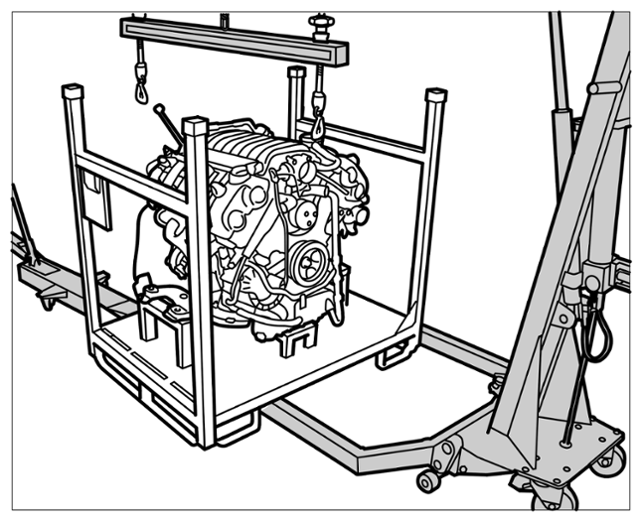

Workshop crane and transport frame

When removing the new engine from the transport frame, it may be necessary to raise the transport frame at the side (at jack or similar) > Workshop crane and transport frame
When removing the new engine from the transport frame, it may be necessary to safeguard the engine against lateral movement using a second worker und against scratching by covering it with a blanket.

Lift the engine with a workshop crane.
1. 1.1 > 3033 - Lifting tackle must be engaged in the transport eyebolts on the engine. Raise the workshop crane slightly and tension the spindles slightly. The lifting tackle must be adjusted evenly.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

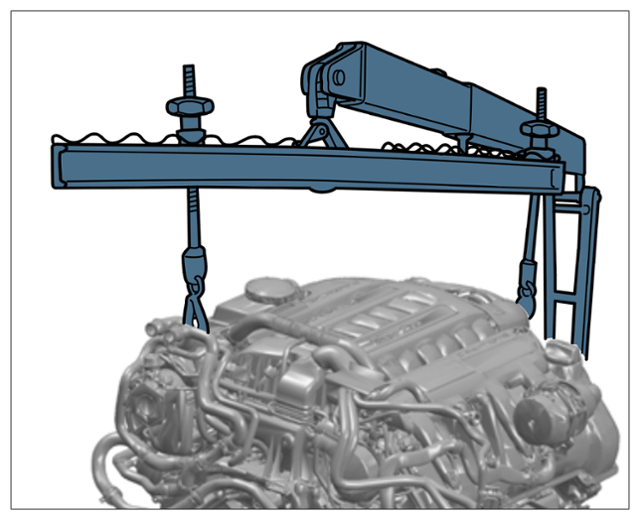

Workshop crane with lifting tackle (similar to illustration)
Remove all-wheel final drive.
> 398819 REMOVING AND INSTALLING ALL-WHEEL FINAL DRIVE (V6)
Remove engine carrier -2- at the left and right.

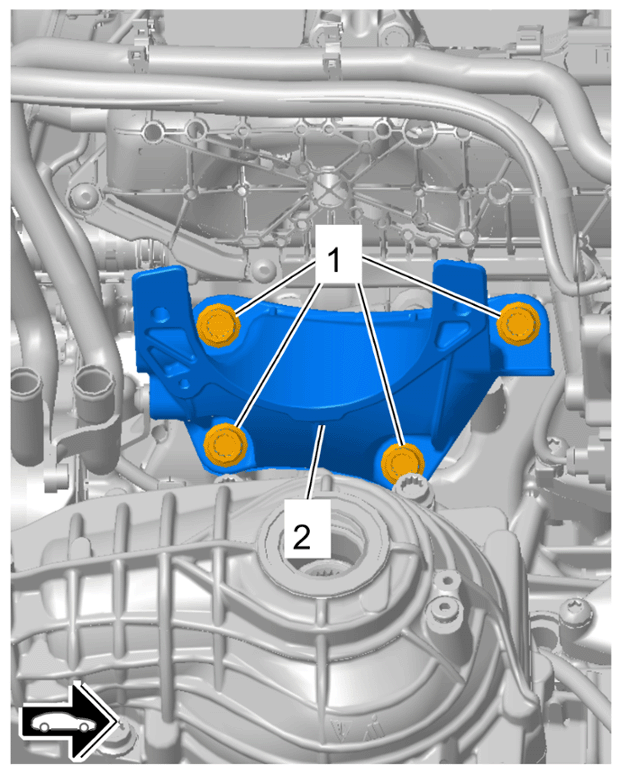

1. 3.1 Unscrew screws -1- and remove engine carrier -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right engine carrier
