Removing Temperature Sensor In Heating/Fresh-Air Unit On Passenger'S Side

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove temperature sensor in heating/fresh-air unit on passenger's side -3-  .
    1. 1.1 Release and unplug electric plug connection -6-  .
    2. 1.2 Release temperature sensor in heating/fresh-air unit on passenger's side -3-  by turning it and remove it.

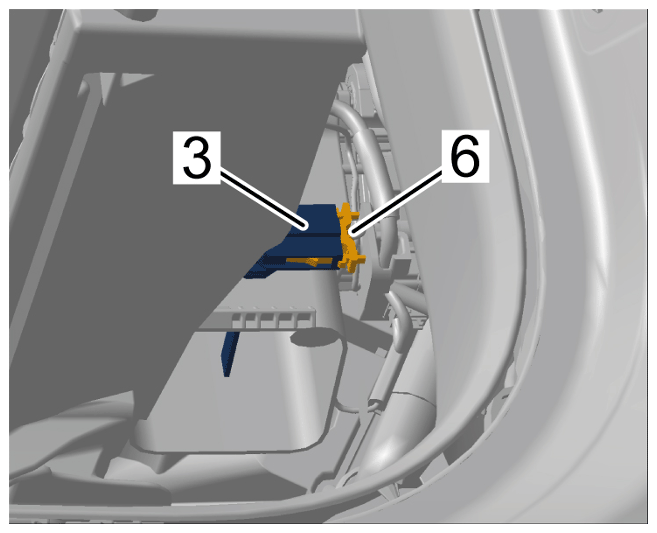

      G15875470Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing temperature sensor in heating/fresh-air unit on passenger's side
